Work Breakdown Structure (WBS)

WBS diagram are still in beta: the syntax may change without notice.

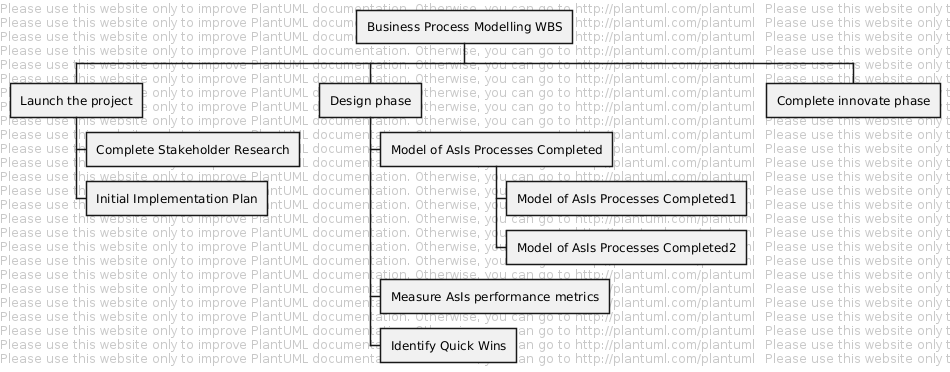

OrgMode syntax

This syntax is compatible with OrgMode

@startwbs
* Business Process Modelling WBS
** Launch the project
*** Complete Stakeholder Research
*** Initial Implementation Plan
** Design phase
*** Model of AsIs Processes Completed
**** Model of AsIs Processes Completed1
**** Model of AsIs Processes Completed2
*** Measure AsIs performance metrics
*** Identify Quick Wins
** Complete innovate phase
@endwbs

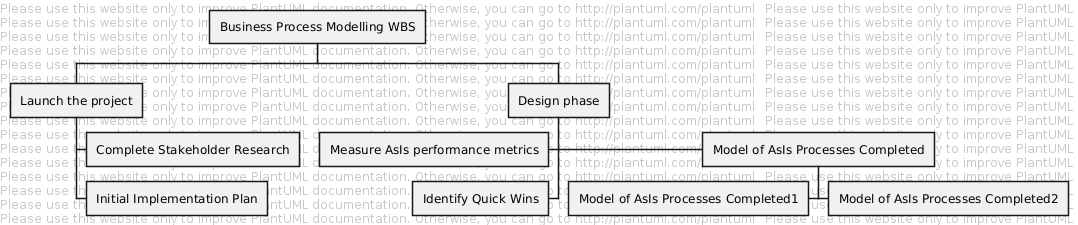

Change direction

You can change direction using < and >

@startwbs
* Business Process Modelling WBS
** Launch the project
*** Complete Stakeholder Research
*** Initial Implementation Plan
** Design phase
*** Model of AsIs Processes Completed
****< Model of AsIs Processes Completed1
****> Model of AsIs Processes Completed2
***< Measure AsIs performance metrics
***< Identify Quick Wins
@endwbs

Arithmetic notation

You can use the following notation to choose diagram side.

@startwbs
+ New Job
++ Decide on Job Requirements
+++ Identity gaps
+++ Review JDs
++++ Sign-Up for courses
++++ Volunteer
++++ Reading
++- Checklist
+++- Responsibilities
+++- Location
++ CV Upload Done
+++ CV Updated
++++ Spelling & Grammar
++++ Check dates
---- Skills
+++ Recruitment sites chosen
@endwbs

Multilines

You can use : and ; to have multilines box, as on link::mindmap-diagram#4ea2ymh57pwsk99qth2e[MindMap].

@startwbs
* <&flag> Debian
** <&globe> Ubuntu

***:Linux Mint
Open Source;

*** Kubuntu
*** ...
@endwbs

[Ref. QA-13945]

Removing box

You can use underscore _ to remove box drawing.

Boxless on Arithmetic notation

Several boxless node

@startwbs
+ Project
 + Part One
  + Task 1.1
   - LeftTask 1.2
   + Task 1.3
  + Part Two
   + Task 2.1
   + Task 2.2
   -_ Task 2.2.1 To the left boxless
   -_ Task 2.2.2 To the Left boxless
   +_ Task 2.2.3 To the right boxless
@endwbs

All boxless node

@startwbs
+_ Project
 +_ Part One
  +_ Task 1.1
   -_ LeftTask 1.2
   +_ Task 1.3
  +_ Part Two
   +_ Task 2.1
   +_ Task 2.2
   -_ Task 2.2.1 To the left boxless
   -_ Task 2.2.2 To the Left boxless
   +_ Task 2.2.3 To the right boxless
@endwbs

Boxless on OrgMode syntax

Several boxless node

@startwbs
* World
** America
***_ Canada
***_ Mexico
***_ USA
** Europe
***_  England
***_  Germany
***_  Spain
@endwbs

[Ref. QA-13297]

All boxless node

@startwbs
*_ World
**_ America
***_ Canada
***_ Mexico
***_ USA
**_ Europe
***_  England
***_  Germany
***_  Spain
@endwbs

[Ref. QA-13355]

Colors (with inline or style color)

It is possible to change node link::color[color]:

  • with inline color

@startwbs
*[#SkyBlue] this is the partner workpackage
**[#pink] this is my workpackage
** this is another workpackage
@endwbs
@startwbs
+[#SkyBlue] this is the partner workpackage
++[#pink] this is my workpackage
++ this is another workpackage
@endwbs

[Ref. QA-12374, only from v1.2020.20]

  • with style color

@startwbs
<style>
wbsDiagram {
  .pink {
      BackgroundColor pink
  }
  .your_style_name {
      BackgroundColor SkyBlue
  }
}
</style>
* this is the partner workpackage <<your_style_name>>
** this is my workpackage <<pink>>
** this is another workpackage
@endwbs
@startwbs

+ this is the partner workpackage <>
++ this is my workpackage <>
++ this is another workpackage
@endwbs

Using style

It is possible to change diagram style.

@startwbs

* World
** America
*** Canada
*** Mexico
**** Chihuahua
*** USA
**** Texas
***< New York
** Europe
***_  England
***_  Germany
***_  Spain
@endwbs

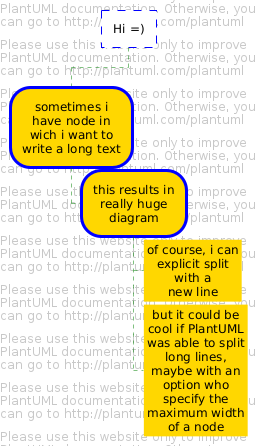

Word Wrap

Using MaximumWidth setting you can control automatic word wrap. Unit used is pixel.

@startwbs




* Hi =)
** sometimes i have node in wich i want to write a long text
*** this results in really huge diagram
**** of course, i can explicit split with a\nnew line
**** but it could be cool if PlantUML was able to split long lines, maybe with an option who specify the maximum width of a node

@endwbs
