Activity Diagram (new)

Old link::activity-diagram-legacy[syntax for activity diagram] had several limitations and drawbacks (for example, it’s difficult to maintain).

So a completely new syntax and implementation is now available to users. Another advantage of this implementation is that it’s done without the need of having Graphviz installed (as for sequence diagrams).

This syntax will replace the old legacy one. However, for compatibility reason, the old syntax will still be recognized, to ensure ascending compatibility.

Users are simply encouraged to migrate to the new syntax.

Simple action

Activities label starts with : and ends with ;.

Text formatting can be done using link::creole[creole wiki syntax].

They are implicitly linked in their definition order.

@startuml
:Hello world;
:This is defined on
several **lines**;
@enduml

Start/Stop/End

You can use start and stop keywords to denote the beginning and the end of a diagram.

@startuml
start
:Hello world;
:This is defined on
several **lines**;
stop
@enduml

You can also use the end keyword.

@startuml
start
:Hello world;
:This is defined on
several **lines**;
end
@enduml

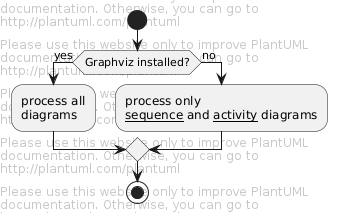

Conditional

You can use if, then and else keywords to put tests in your diagram. Labels can be provided using parentheses.

The 3 syntaxes are possible: * if (...) then (...)

@startuml

start

if (Graphviz installed?) then (yes)
  :process all\ndiagrams;
else (no)
  :process only
  __sequence__ and __activity__ diagrams;
endif

stop

@enduml

  • if (...) is (...) then

@startuml
if (color?) is (<color:red>red) then
:print red;
else
:print not red;
@enduml

  • if (...) equals (...) then

@startuml
if (counter?) equals (5) then
:print 5;
else
:print not 5;
@enduml

[Ref. QA-301]

Several tests (horizontal mode)

You can use the elseif keyword to have several tests (by default, it is the horizontal mode):

@startuml
start
if (condition A) then (yes)
  :Text 1;
elseif (condition B) then (yes)
  :Text 2;
  stop
(no) elseif (condition C) then (yes)
  :Text 3;
(no) elseif (condition D) then (yes)
  :Text 4;
else (nothing)
  :Text else;
endif
stop
@enduml

Several tests (vertical mode)

You can use the command !pragma useVerticalIf on to have the tests in vertical mode:

@startuml
!pragma useVerticalIf on
start
if (condition A) then (yes)
  :Text 1;
elseif (condition B) then (yes)
  :Text 2;
  stop
elseif (condition C) then (yes)
  :Text 3;
elseif (condition D) then (yes)
  :Text 4;
else (nothing)
  :Text else;
endif
stop
@enduml

You can use the -P link::command-line[command-line] option to specify the pragma:

java -jar plantuml.jar -PuseVerticalIf=on

[Refs. QA-3931, issue-582]

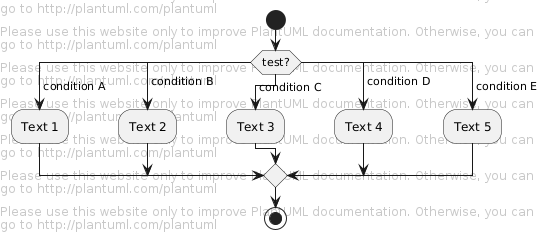

Switch and case [switch, case, endswitch]

You can use switch, case and endswitch keywords to put switch in your diagram.

Labels can be provided using parentheses.

@startuml
start
switch (test?)
case ( condition A )
  :Text 1;
case ( condition B )
  :Text 2;
case ( condition C )
  :Text 3;
case ( condition D )
  :Text 4;
case ( condition E )
  :Text 5;
endswitch
stop
@enduml

Conditional with stop on an action [kill, detach]

You can stop action on a if loop.

@startuml
if (condition?) then
  :error;
  stop
endif
#palegreen:action;
@enduml

But if you want to stop at the precise action, you can use the kill or detach keyword:

  • kill

@startuml
if (condition?) then
  #pink:error;
  kill
endif
#palegreen:action;
@enduml

[Ref. QA-265]

  • detach

@startuml
if (condition?) then
  #pink:error;
  detach
endif
#palegreen:action;
@enduml

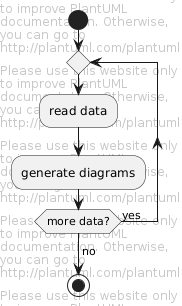

Repeat loop

You can use repeat and repeatwhile keywords to have repeat loops.

@startuml

start

repeat
  :read data;
  :generate diagrams;
repeat while (more data?) is (yes)
->no;
stop

@enduml

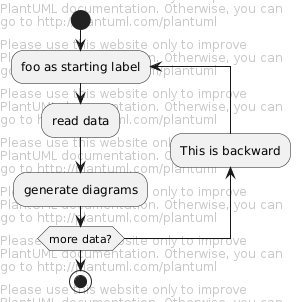

It is also possible to use a full action as repeat target and insert an action in the return path using the backward keyword.

@startuml

start

repeat :foo as starting label;
  :read data;
  :generate diagrams;
backward:This is backward;
repeat while (more data?)

stop

@enduml

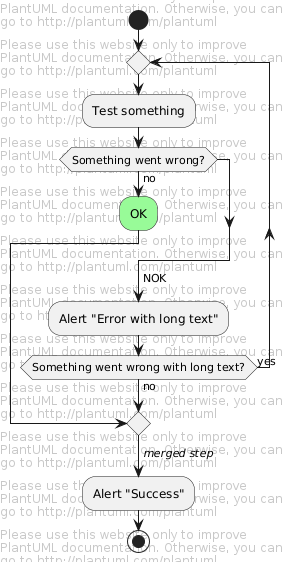

Break on a repeat loop [break]

You can use the break keyword after an action on a loop.

@startuml
start
repeat
  :Test something;
    if (Something went wrong?) then (no)
      #palegreen:OK;
      break
    endif
    ->NOK;
    :Alert "Error with long text";
repeat while (Something went wrong with long text?) is (yes) not (no)
->//merged step//;
:Alert "Success";
stop
@enduml

[Ref. QA-6105]

Goto and Label Processing [label, goto]

⚠ It is currently only experimental 🚧

You can use label and goto keywords to denote goto processing, with: * label <label_name> * goto <label_name>

@startuml
title Point two queries to same activity\nwith `goto`
start
if (Test Question?) then (yes)
'space label only for alignment
label sp_lab0
label sp_lab1
'real label
label lab
:shared;
else (no)
if (Second Test Question?) then (yes)
label sp_lab2
goto sp_lab1
else
:nonShared;
endif
endif
:merge;
@enduml

[Ref. QA-15026, QA-12526 and initially QA-1626]

While loop

You can use while and endwhile keywords to have repeat loops.

@startuml

start

while (data available?)
  :read data;
  :generate diagrams;
endwhile

stop

@enduml

It is possible to provide a label after the endwhile keyword, or using the is keyword.

@startuml
while (check filesize ?) is (not empty)
  :read file;
endwhile (empty)
:close file;
@enduml

If you are using detach to form an infinite while loop, then you will want to also hide the partial arrow that results using -[hidden]->

@startuml
:Step 1;
if (condition1) then
  while (loop forever)
   :Step 2;
  endwhile
  -[hidden]->
  detach
else
  :end normally;
  stop
endif
@enduml

Parallel processing [fork, fork again, end fork, end merge]

You can use fork, fork again and end fork or end merge keywords to denote parallel processing.

Simple fork

@startuml
start
fork
  :action 1;
fork again
  :action 2;
end fork
stop
@enduml

fork with end merge

@startuml
start
fork
  :action 1;
fork again
  :action 2;
end merge
stop
@enduml

[Ref. QA-5320]

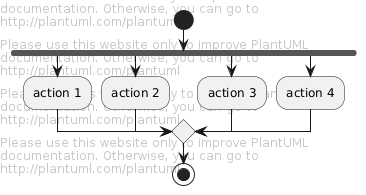

@startuml
start
fork
  :action 1;
fork again
  :action 2;
fork again
  :action 3;
fork again
  :action 4;
end merge
stop
@enduml
@startuml
start
fork
  :action 1;
fork again
  :action 2;
  end
end merge
stop
@enduml

[Ref. QA-13731]

Label on end fork (or UML joinspec):

@startuml
start
fork
  :action A;
fork again
  :action B;
end fork {or}
stop
@enduml
@startuml
start
fork
  :action A;
fork again
  :action B;
end fork {and}
stop
@enduml

[Ref. QA-5346]

Other example

@startuml

start

if (multiprocessor?) then (yes)
  fork
    :Treatment 1;
  fork again
    :Treatment 2;
  end fork
else (monoproc)
  :Treatment 1;
  :Treatment 2;
endif

@enduml

Split processing

Split

You can use split, split again and end split keywords to denote split processing.

@startuml
start
split
   :A;
split again
   :B;
split again
   :C;
split again
   :a;
   :b;
end split
:D;
end
@enduml

Input split (multi-start)

You can use hidden arrows to make an input split (multi-start):

@startuml
split
   -[hidden]->
   :A;
split again
   -[hidden]->
   :B;
split again
   -[hidden]->
   :C;
end split
:D;
@enduml
@startuml
split
   -[hidden]->
   :A;
split again
   -[hidden]->
   :a;
   :b;
split again
   -[hidden]->
   (Z)
end split
:D;
@enduml

[Ref. QA-8662]

Output split (multi-end)

You can use kill or detach to make an output split (multi-end):

@startuml
start
split
   :A;
   kill
split again
   :B;
   detach
split again
   :C;
   kill
end split
@enduml
@startuml
start
split
   :A;
   kill
split again
   :b;
   :c;
   detach
split again
   (Z)
   detach
split again
   end
split again
   stop
end split
@enduml

Notes

Text formatting can be done using link::creole[creole wiki syntax].

A note can be floating, using floating keyword.

@startuml

start
:foo1;
floating note left: This is a note
:foo2;
note right
  This note is on several
  //lines// and can
  contain HTML
  ====
  * Calling the method ""foo()"" is prohibited
end note
stop

@enduml

You can add note on backward activity:

@startuml
start
repeat :Enter data;
:Submit;
backward :Warning;
note right: Note
repeat while (Valid?) is (No) not (Yes)
stop
@enduml

[Ref. QA-11788]

You can add note on partition activity:

@startuml
start
partition "**process** HelloWorld" {
    note
        This is my note
        ----
        //Creole test//
    end note
    :Ready;
    :HelloWorld(i)>
    :Hello-Sent;
}
@enduml

[Ref. QA-2398]

Colors

You can specify a link::color[color] for some activities.

@startuml

start
:starting progress;
#HotPink:reading configuration files
These files should be edited at this point!;
#AAAAAA:ending of the process;

@enduml

You can also use link::color[gradient color].

@startuml
start
partition #red/white testPartition {
        #blue\green:testActivity;
}
@enduml

[Ref. QA-4906]

Lines without arrows

You can use skinparam ArrowHeadColor none in order to connect activities using lines only, without arrows.

@startuml
skinparam ArrowHeadColor none
start
:Hello world;
:This is on defined on
several **lines**;
stop
@enduml
@startuml
skinparam ArrowHeadColor none
start
repeat :Enter data;
:Submit;
backward :Warning;
repeat while (Valid?) is (No) not (Yes)
stop
@enduml

Arrows

Using the -> notation, you can add texts to arrow, and change their link::color[color].

It’s also possible to have dotted, dashed, bold or hidden arrows.

@startuml
:foo1;
-> You can put text on arrows;
if (test) then
  -[#blue]->
  :foo2;
  -[#green,dashed]-> The text can
  also be on several lines
  and **very** long...;
  :foo3;
else
  -[#black,dotted]->
  :foo4;
endif
-[#gray,bold]->
:foo5;
@enduml

Connector

You can use parentheses to denote connector.

@startuml
start
:Some activity;
(A)
detach
(A)
:Other activity;
@enduml

Color on connector

You can add link::color[color] on connector.

@startuml
start
:The connector below
wishes he was blue;
#blue:(B)
:This next connector
feels that she would
be better off green;
#green:(G)
stop
@enduml

[Ref. QA-10077]

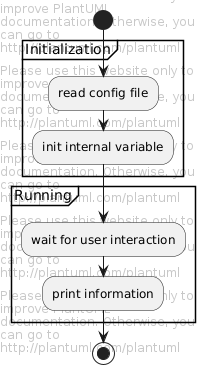

Grouping or partition

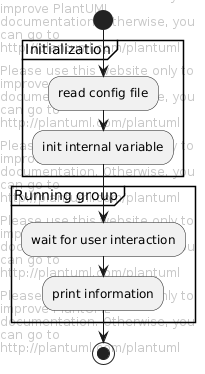

Group

You can group activity together by defining group:

@startuml
start
group Initialization
    :read config file;
    :init internal variable;
end group
group Running group
    :wait for user interaction;
    :print information;
end group

stop
@enduml

Partition

You can group activity together by defining partition:

@startuml
start
partition Initialization {
    :read config file;
    :init internal variable;
}
partition Running {
    :wait for user interaction;
    :print information;
}

stop
@enduml

It’s also possible to change partition link::color[color]:

@startuml
start
partition #lightGreen "Input Interface" {
    :read config file;
    :init internal variable;
}
partition Running {
    :wait for user interaction;
    :print information;
}
stop
@enduml

[Ref. QA-2793]

It’s also possible to add link::link[link] to partition:

@startuml
start
partition "[[http://plantuml.com partition_name]]" {
    :read doc. on [[http://plantuml.com plantuml_website]];
    :test diagram;
}
end
@enduml

[Ref. QA-542]

Group, Partition, Package, Rectangle or Card

You can group activity together by defining: * group; * partition; * package; * rectangle; * card.

@startuml
start
group Group
  :Activity;
end group
floating note: Note on Group

partition Partition {
  :Activity;
}
floating note: Note on Partition

package Package {
  :Activity;
}
floating note: Note on Package

rectangle Rectangle {
  :Activity;
}
floating note: Note on Rectangle

card Card {
  :Activity;
}
floating note: Note on Card
end
@enduml

Swimlanes

Using pipe |, you can define swimlanes.

It’s also possible to change swimlanes link::color[color].

@startuml
|Swimlane1|
start
:foo1;
|#AntiqueWhite|Swimlane2|
:foo2;
:foo3;
|Swimlane1|
:foo4;
|Swimlane2|
:foo5;
stop
@enduml

You can add if conditional or repeat or while loop within swimlanes.

@startuml
|#pink|Actor_For_red|
start
if (color?) is (red) then
#pink:**action red**;
:foo1;
else (not red)
|#lightgray|Actor_For_no_red|
#lightgray:**action not red**;
:foo2;
endif
|Next_Actor|
#lightblue:foo3;
:foo4;
|Final_Actor|
#palegreen:foo5;
stop
@enduml

You can also use alias with swimlanes, with this syntax: * |[#<color>|]<swimlane_alias>| <swimlane_title>

@startuml
|#palegreen|f| fisherman
|c| cook
|#gold|e| eater
|f|
start
:go fish;
|c|
:fry fish;
|e|
:eat fish;
stop
@enduml

[Ref. QA-2681]

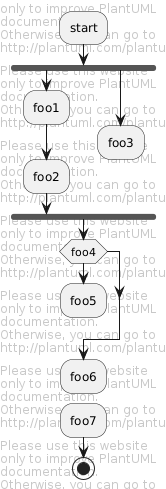

Detach or kill [detach, kill]

It’s possible to remove an arrow using the detach or kill keyword:

  • detach

@startuml
 :start;
 fork
   :foo1;
   :foo2;
 fork again
   :foo3;
   detach
 endfork
 if (foo4) then
   :foo5;
   detach
 endif
 :foo6;
 detach
 :foo7;
 stop
@enduml

  • kill

@startuml
 :start;
 fork
   :foo1;
   :foo2;
 fork again
   :foo3;
   kill
 endfork
 if (foo4) then
   :foo5;
   kill
 endif
 :foo6;
 kill
 :foo7;
 stop
@enduml

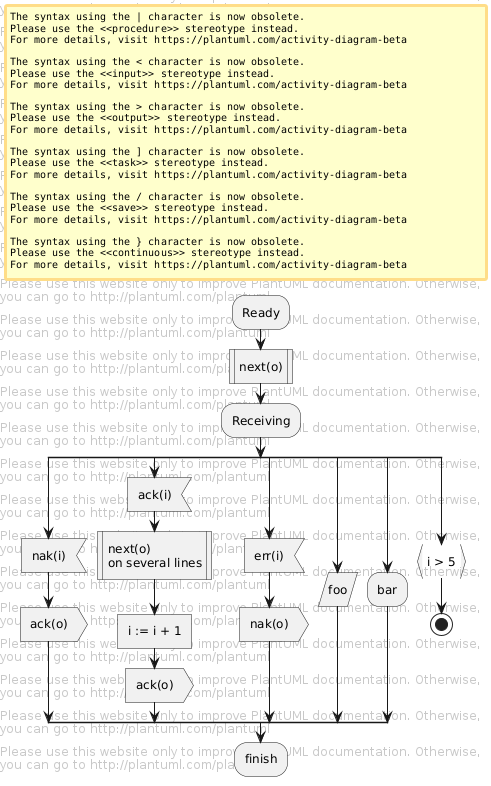

SDL (Specification and Description Language)

By changing the final ; separator, you can set different rendering for the activity: * | * < * > * / * \\ * ] * }

@startuml
:Ready;
:next(o)|
:Receiving;
split
 :nak(i)<
 :ack(o)>
split again
 :ack(i)<
 :next(o)
 on several lines|
 :i := i + 1]
 :ack(o)>
split again
 :err(i)<
 :nak(o)>
split again
 :foo/
split again
 :bar\\
split again
 :i > 5}
stop
end split
:finish;
@enduml

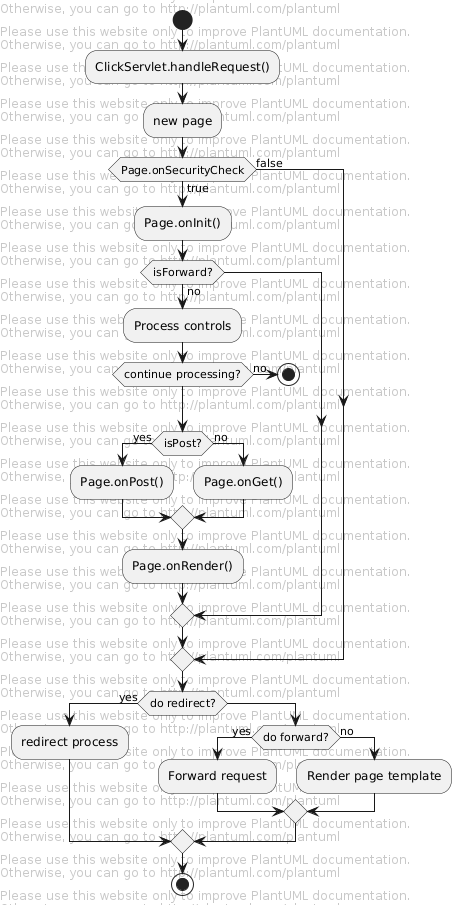

Complete example

@startuml

start
:ClickServlet.handleRequest();
:new page;
if (Page.onSecurityCheck) then (true)
  :Page.onInit();
  if (isForward?) then (no)
    :Process controls;
    if (continue processing?) then (no)
      stop
    endif

    if (isPost?) then (yes)
      :Page.onPost();
    else (no)
      :Page.onGet();
    endif
    :Page.onRender();
  endif
else (false)
endif

if (do redirect?) then (yes)
  :redirect process;
else
  if (do forward?) then (yes)
    :Forward request;
  else (no)
    :Render page template;
  endif
endif

stop

@enduml

Condition Style

Inside style (by default)

@startuml
skinparam conditionStyle inside
start
repeat
  :act1;
  :act2;
repeatwhile (end)
:act3;
@enduml
@startuml
start
repeat
  :act1;
  :act2;
repeatwhile (end)
:act3;
@enduml

Diamond style

@startuml
skinparam conditionStyle diamond
start
repeat
  :act1;
  :act2;
repeatwhile (end)
:act3;
@enduml

InsideDiamond (or Foo1) style

@startuml
skinparam conditionStyle InsideDiamond
start
repeat
  :act1;
  :act2;
repeatwhile (end)
:act3;
@enduml
@startuml
skinparam conditionStyle foo1
start
repeat
  :act1;
  :act2;
repeatwhile (end)
:act3;
@enduml

[Ref. QA-1290 and #400]

Condition End Style

Diamond style (by default)

  • With one branch

@startuml
skinparam ConditionEndStyle diamond
:A;
if (decision) then (yes)
    :B1;
else (no)
endif
:C;
@enduml

  • With two branches (B1, B2)

@startuml
skinparam ConditionEndStyle diamond
:A;
if (decision) then (yes)
    :B1;
else (no)
    :B2;
endif
:C;
@enduml
@enduml

Horizontal line (hline) style

  • With one branch

@startuml
skinparam ConditionEndStyle hline
:A;
if (decision) then (yes)
    :B1;
else (no)
endif
:C;
@enduml

  • With two branches (B1, B2)

@startuml
skinparam ConditionEndStyle hline
:A;
if (decision) then (yes)
    :B1;
else (no)
    :B2;
endif
:C;
@enduml
@enduml

[Ref. QA-4015]

Using (global) style

Without style (by default)

@startuml
start
:init;
-> test of color;
if (color?) is (red) then
:print red;
else
:print not red;
note right: no color
endif
partition End {
:end;
}
-> this is the end;
end
@enduml

With style

You can use link::style-evolution[style] to change rendering of elements.

@startuml

start
:init;
-> test of color;
if (color?) is (red) then
:print red;
else
:print not red;
note right: no color
endif
partition End {
:end;
}
-> this is the end;
end
@enduml

This page was built using the Antora default UI.

The source code for this UI is licensed under the terms of the MPL-2.0 license.
