Preprocessing JSON

Some JSON preprocessing capabilities are included in PlantUML, and available for all diagrams.

That extends the current link::preprocessing[preprocessing].

🛈 If you are looking for how to display JSON data: see rather link::json[Display JSON Data].

Variable definition

In addition to existing type (String and Integer), you can define JSON variable.

Example:

!$foo = { "name": "John", "age" : 30 }

Corresponding of this structure:

@startjson
{
"$foo": { "name": "John", "age" : 30 }
}
@endjson
plantuml

Access to data

Once a variable is defined, you can access to its members:

@startuml
!$foo = { "name": "John", "age" : 30 }
Alice -> Bob : Do you know **$foo.name** ?
@enduml
plantuml

Complex structures

It is possible to use complex JSON objects and arrays, with definition on several lines.

Let $foo, the structure:

@startjson
{
"$foo":{ "company": "Skynet", "employees" : [
  {"name" : "alice", "salary": 100 },
  {"name" : "bob", "salary": 50} ]
}
}
@endjson
plantuml

You can acess to the values: * $foo.employees[0].name * $foo.employees[0].salary

@startuml
!$foo = { "company": "Skynet", "employees" : [
  {"name" : "alice", "salary": 100 },
  {"name" : "bob", "salary": 50} ]
}
start
:The salary of $foo.employees[0].name is $foo.employees[0].salary;
@enduml
plantuml

Or using intermediate variables: * !$attribute_1="name" * !$attribute_2="salary" to acess to the values: * $foo.employees[0][$attribute_1] * $foo.employees[0][$attribute_2]

@startuml
!$foo = { "company": "Skynet", "employees" : [
  {"name" : "alice", "salary": 100 },
  {"name" : "bob", "salary": 50} ]
}

!$attribute_1="name"
!$attribute_2="salary"

start
:The salary of $foo.employees[0][$attribute_1] is $foo.employees[0][$attribute_2];
@enduml
plantuml

Loading data

Some standard function provides a way to load JSON object from URL or local files:

!$foo = %loadJSON("http://foo.net/users/list.json")
!$foo2 = %loadJSON("myDir/localFile.json")

Available since 1.2021.15

Loop [foreach]

If you define array, you can loop over.

@startmindmap
!$foo = { "company": "Skynet", "employees" : [
  {"name" : "alice", "salary": 100 },
  {"name" : "bob", "salary": 50} ]
}

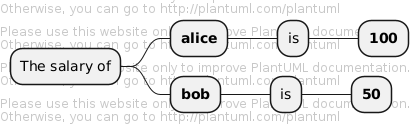

* The salary of
!foreach $emp in $foo.employees
  ** **$emp.name**
  *** is
  **** **$emp.salary**
!endfor
@endmindmap
plantuml

[SW] Some remarks * for or better foreach ? → foreach * It would be nice to also have "break" and "continue" * It would be nice to also have the for or while loop with a standard variable

Full Example

From a example worked in a forum question, with this JSON structure:

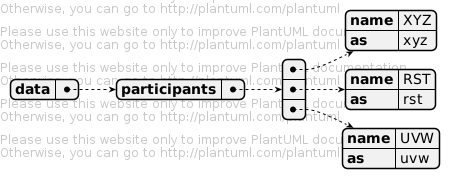

@startjson
{
"data":
  {
  "participants": [
    {"name": "XYZ", "as": "xyz"},
    {"name": "RST", "as": "rst"},
    {"name": "UVW", "as": "uvw"}]
  }
}
@endjson
plantuml
@startuml
!unquoted function DRAW($x) return %set_variable_value($x, 1)

!procedure addComponent($part, $component, $as)
    !if %variable_exists($part)
        participant "$component" as $as
    !endif
!end procedure

!procedure addBox2($part, $box, $colour, $data)
    !if %variable_exists($part)
        box "$box" #$colour
            !foreach $item in $data.participants
                addComponent($part, $item.name, $item.as)
            !endfor
        end box
    !endif
!end procedure

DRAW(PART25)

!ifdef PART25
title  TESTING  (Boxes & Participants)  //Part25//
!endif

!$data={
  "participants": [
    {"name": "XYZ", "as": "xyz"},
    {"name": "RST", "as": "rst"},
    {"name": "UVW", "as": "uvw"}]
}

addBox2("PART25", "New Box", "white", $data)
@enduml
plantuml

Self-descriptive example

Here is a self-descriptive example:

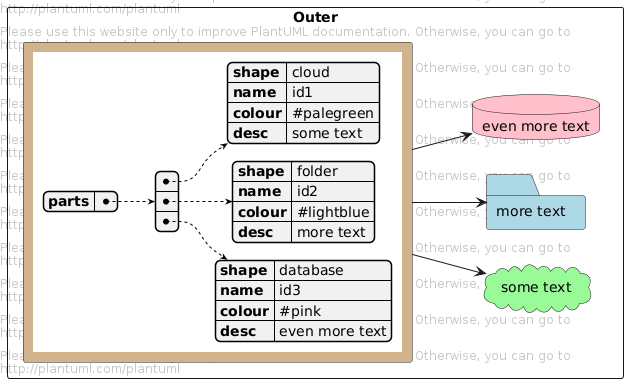

@startuml
left to right direction

!$data={"parts":[
{"shape": "cloud",    "name": "id1", "colour": "#palegreen", "desc": "some text"},
{"shape": "folder",   "name": "id2", "colour": "#lightblue", "desc": "more text"},
{"shape": "database", "name": "id3", "colour": "#pink",      "desc": "even more text"}
]}

rectangle Outer {
rectangle Inner #tan as "
{{json
$data
}}
"
together {
!foreach $part in $data.parts
  $part.shape $part.colour $part.name as "$part.desc"
  Inner --> $part.name
!endfor
}
}
@enduml
plantuml

[Adapted from QA-12917]

%get_json_keys builtin function

You can use %get_json_keys to get all the keys of one level on a JSON structure.

@startuml
!$myjson = {
"root" : [{
    "fruits": [
        {"name": "apple", "colorId": "1"},
        {"name": "pear", "colorId": "2"},
        {"name": "pineapple", "colorId": "3"}
    ]
},
{
    "colors": [
        {"id": "1", "name": "red"},
        {"id": "2", "name": "green"},
        {"id": "3", "name": "yellow"}
    ]
}]
}

!foreach $key in %get_json_keys($myjson.root)
     rectangle $key
!endfor
@enduml
plantuml
@startwbs
!$json_object = {
  "name": "Mark McGwire", "hr": 65, "avg":  0.278
}

* json_object
 * keys of json_object
!foreach $key in %get_json_keys($json_object)
  * $key
!endfor
@endwbs
plantuml

[Ref. QA-15360, QA-15423]

%get_json_type builtin function

You can use %get_json_type to get the type of an element of a JSON structure (returns a string).

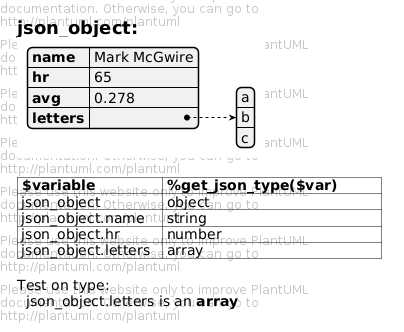

@startuml
!$json_object = {
  "name": "Mark McGwire", "hr": 65, "avg":  0.278,
  "letters": ["a", "b", "c"]
}

label l [
=json_object:
{{json
$json_object
}}

|= $variable          |= get_json_type($var)         |
| json_object         | %get_json_type($json_object)         |
| json_object.name    | %get_json_type($json_object.name)    |
| json_object.hr      | %get_json_type($json_object.hr)      |
| json_object.letters | %get_json_type($json_object.letters) |

Test on type:
!if %get_json_type($json_object.letters)=="array"
  json_object.letters is an **%get_json_type($json_object.letters)**
!endif
]
@enduml
plantuml

[Ref. QA-15360]

+ %json_key_exists+ builtin function

You can use %json_key_exists to know if a key exists on a JSON structure (returns a boolean).

@startuml
!$json_object= {
  "name": "Mark McGwire", "hr": 65, "avg":  0.278
}

label l [
|= key  |= json_key_exists(json_object, key)   |
| "hr"  | %json_key_exists($json_object, "hr") |
| "foo" | %json_key_exists($json_object, "foo")|
| null  | %json_key_exists($json_object, null) |
]
@enduml
plantuml

[Ref. QA-15423]

+ %size+ builtin function

You can use %size to know the size of different elements on a JSON structure.

For each type here are the return value:

Type Return value

JSON Object

the number of pairs it contains

JSON Array

the number of values it contains

string value

the number of characters it contains

numeric value

zero

true/false/null

zero

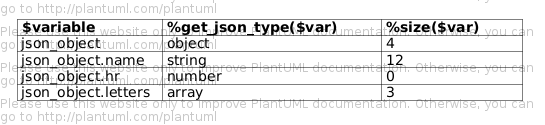

@startuml
!$json_object= {
  "name"   : "Mark McGwire",
  "hr"     : 65,
  "avg"    : 0.278,
  "letters": ["a", "b", "c"]
}

label l [
|= $variable          |= get_json_type($var)         |= size($var)         |
| json_object         | %get_json_type($json_object)         | %size($json_object)         |
| json_object.name    | %get_json_type($json_object.name)    | %size($json_object.name)    |
| json_object.hr      | %get_json_type($json_object.hr)      | %size($json_object.hr)      |
| json_object.letters | %get_json_type($json_object.letters) | %size($json_object.letters) |
]
@enduml
plantuml

[Ref. QA-14901]
