Class Diagram issues (class-diagram-issues)

This page lists issues on link::class-diagram[Class Diagram].

Wanted features

Adding, on inline style: * fields * methods

+ on [beta-]style

Proposal syntax:

@startuml
class Demo1 #back:lightgreen|yellow;header:blue/red;methods:red\green;fields:pink
@enduml

Arrow head Groupinheritance bug

@startuml
skinparam groupInheritance 3

class A1

A1 <|-- B1

A2 <|-- B2
A2 <|-- C2

A3 <|-- B3
A3 <|-- C3
A3 <|-- D3

A4 <|-- B4
A4 <|-- C4
A4 <|-- D4

E4 --|> A4 #blue
E6 --|> A4 #blue
E5 --|> A4 #blue
@enduml

Same on element:

@startuml
skinparam groupInheritance 3

card A1

A1 <|-- B1

A2 <|-- B2
A2 <|-- C2

A3 <|-- B3 #blue
A3 <|-- C3 #blue
A3 <|-- D3 #blue

A4 <|-- B4 #blue
A4 <|-- C4 #blue
A4 <|-- D4 #blue

E4 --|> A4
E6 --|> A4
E5 --|> A4
@enduml

Another similar groupInheritance issue

@startuml
skinparam groupInheritance 2

Parent <|-- Child1
Parent <|-- Child2
Composed --* Parent #blue
Aggregated --o Parent #blue
Arrow --> Parent #blue
@enduml
@startuml
skinparam groupInheritance 3

Parent <|-- Child1
Parent <|-- Child2
Composed --* Parent
Aggregated --o Parent
Arrow --> Parent
@enduml

Line thickness issue (from ~V1.2022.2) [fixed on 1.2022.6betaX]

@startuml
title Bracketed line thickness
class foo
class bar
bar1 : [thickness=1]
bar2 : [thickness=2]
bar3 : [thickness=4]
bar4 : [thickness=8]
bar5 : [thickness=16]

foo --> bar                 : ∅
foo -[thickness=1]-> bar1   : [1]
foo -[thickness=2]-> bar2   : [2]
foo -[thickness=4]-> bar3   : [4]
foo -[thickness=8]-> bar4   : [8]
foo -[thickness=16]-> bar5  : [16]

@enduml

[Ref. QA-4949]

Error on Change class color and style (inline style) [fixed on 1.2022.6betaX]

⚠‼⁉ Appeared from version v1.2022.2++ [fixed on 1.2022.6betaX]

  • Error on ##[style]color: error on style

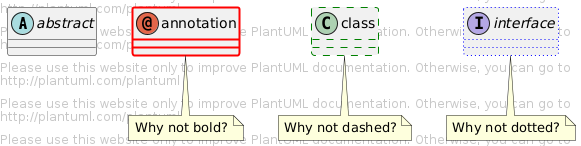

@startuml
abstract   abstract
annotation annotation ##[bold]red
note bottom: Why not bold?
class      class      ##[dashed]green
note bottom: Why not dashed?
interface  interface  ##[dotted]blue
note bottom: Why not dotted?

@enduml

  • #[color|back:color];header:color;line:color;line.[bold|dashed|dotted];text:color

@startuml
abstract   abstract
annotation annotation #line:red;line.bold;text:red
note bottom: Why not bold?
class      class      #line:green;line.dashed;text:green
note bottom: Why not dashed?
interface  interface  #line:blue;line.dotted;text:blue
note bottom: Why not dotted?
@enduml

First original example:

@startuml
class bar #line:green;back:lightblue
class bar2 #lightblue;line:green

class Foo1 #back:red;line:00FFFF
class FooDashed #line.dashed:blue
class FooDotted #line.dotted:blue
class FooBold #line.bold
@enduml
