List of all themes
@startuml
help themes
@endumlamiga
Activity with amiga theme
@startuml
@startuml
!theme amiga
start
:init;
-> test of color;
if (color?) is (red) then
:print red;
else
:print not red;
note right: no color
endif
partition End {
:end;
}
-> this is the end;
end
@enduml
@enduml Class with amiga theme
@startuml
@startuml
!theme amiga
abstract abstract
abstract class "abstract class"
annotation annotation
circle circle
() circle_short_form
class class
diamond diamond
<> diamond_short_form
entity entity
enum enum
interface interface
@enduml
@endumlDeployment with amiga theme
@startuml
@startuml
!theme amiga
actor actor
actor/ "actor/"
agent agent
artifact artifact
boundary boundary
card card
circle circle
cloud cloud
collections collections
component component
control control
database database
entity entity
file file
folder folder
frame frame
hexagon hexagon
interface interface
label label
node node
package package
person person
queue queue
rectangle rectangle
stack stack
storage storage
usecase usecase
usecase/ "usecase/"
@enduml
@endumlGantt with amiga theme
@startuml
@startuml
!theme amiga
[Task1] lasts 20 days
note bottom
memo1 ...
memo2 ...
explanations1 ...
explanations2 ...
end note
[Task2] lasts 4 days
[Task1] -> [Task2]
-- Separator title --
[M1] happens on 5 days after [Task1]'s end
-- end --
@enduml

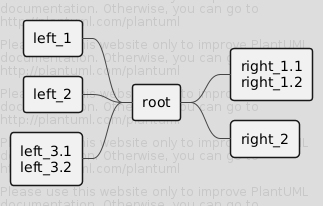

@endumlMindmap with amiga theme
@startuml
@startmindmap
!theme amiga
+ root
**:right_1.1
right_1.2;
++ right_2
left side
-- left_1
-- left_2
**:left_3.1
left_3.2;
@endmindmap
@endumlNwdiag with amiga theme
@startuml
@startuml
!theme amiga
nwdiag {
network DMZ {
address = "y.x.x.x/24"
web01 [address = "y.x.x.1"];
web02 [address = "y.x.x.2"];
}
network Internal {
web01;
web02;
db01 [address = "w.w.w.z", shape = database];
}
group {
description = "long group label";
web01;
web02;
db01;
}
}
@enduml
@endumlObject with amiga theme
@startuml
@startuml
!theme amiga
object user1
user1 : name = "Dummy"
user1 : id = 123
object user2 {
name = "Dummy"
id = 123
}
object o1
object o2
diamond dia
object o3
o1 --> dia
o2 --> dia
dia --> o3
@enduml
@endumlSalt with amiga theme
@startuml
@startsalt
!theme amiga
{+
Just plain text
[This is my button]
() Unchecked radio
(X) Checked radio
[] Unchecked box
[X] Checked box
"Enter text here "
^This is a droplist^
}
@endsalt
@endumlSequence with amiga theme
@startuml
@startuml
!theme amiga
participant Participant as Foo
actor Actor as Foo1
boundary Boundary as Foo2
control Control as Foo3
entity Entity as Foo4
database Database as Foo5
collections Collections as Foo6
queue Queue as Foo7
Foo -> Foo1 : To actor
Foo -> Foo2 : To boundary
Foo -> Foo3 : To control
Foo -> Foo4 : To entity
Foo -> Foo5 : To database
Foo -> Foo6 : To collections
Foo -> Foo7: To queue
@enduml

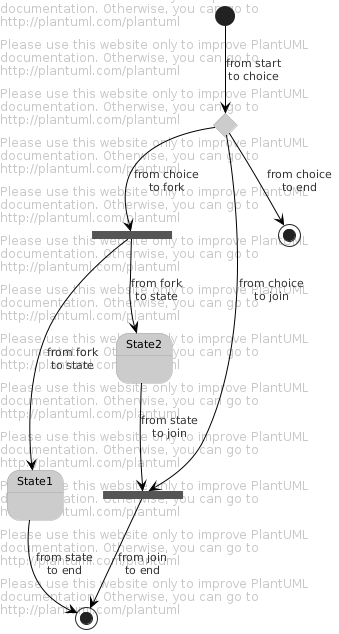

@endumlState with amiga theme
@startuml
@startuml
!theme amiga
state choice1 <>
state fork1 <>
state join2 <>
state end3 <>
[*] --> choice1 : from start\nto choice
choice1 --> fork1 : from choice\nto fork
choice1 --> join2 : from choice\nto join
choice1 --> end3 : from choice\nto end
fork1 ---> State1 : from fork\nto state
fork1 --> State2 : from fork\nto state
State2 --> join2 : from state\nto join
State1 --> [*] : from state\nto end
join2 --> [*] : from join\nto end
@enduml
@enduml aws-orange
Activity with aws-orange theme
@startuml
@startuml
!theme aws-orange
start
:init;
-> test of color;
if (color?) is (red) then
:print red;
else
:print not red;
note right: no color
endif
partition End {
:end;
}
-> this is the end;
end
@enduml

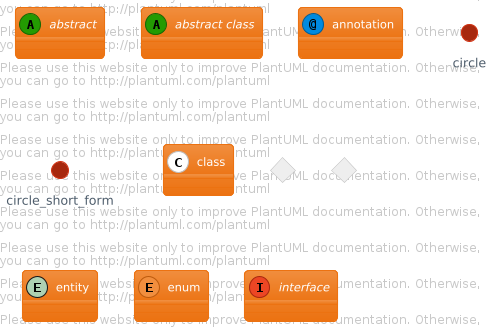

@enduml Class with aws-orange theme
@startuml
@startuml
!theme aws-orange
abstract abstract
abstract class "abstract class"
annotation annotation
circle circle
() circle_short_form
class class
diamond diamond
<> diamond_short_form
entity entity
enum enum
interface interface
@enduml
@endumlDeployment with aws-orange theme
@startuml
@startuml
!theme aws-orange
actor actor
actor/ "actor/"
agent agent
artifact artifact
boundary boundary
card card
circle circle
cloud cloud
collections collections
component component
control control
database database
entity entity
file file
folder folder
frame frame
hexagon hexagon
interface interface
label label
node node
package package
person person
queue queue
rectangle rectangle
stack stack
storage storage
usecase usecase
usecase/ "usecase/"
@enduml
@endumlGantt with aws-orange theme
@startuml
@startuml
!theme aws-orange
[Task1] lasts 20 days
note bottom
memo1 ...
memo2 ...
explanations1 ...
explanations2 ...
end note
[Task2] lasts 4 days
[Task1] -> [Task2]
-- Separator title --
[M1] happens on 5 days after [Task1]'s end
-- end --
@enduml
@endumlMindmap with aws-orange theme
@startuml
@startmindmap
!theme aws-orange
+ root
**:right_1.1
right_1.2;
++ right_2
left side
-- left_1
-- left_2
**:left_3.1
left_3.2;
@endmindmap
@endumlNwdiag with aws-orange theme
@startuml
@startuml
!theme aws-orange
nwdiag {
network DMZ {
address = "y.x.x.x/24"
web01 [address = "y.x.x.1"];
web02 [address = "y.x.x.2"];
}
network Internal {
web01;
web02;
db01 [address = "w.w.w.z", shape = database];
}
group {
description = "long group label";
web01;
web02;
db01;
}
}
@enduml
@endumlObject with aws-orange theme
@startuml
@startuml
!theme aws-orange
object user1
user1 : name = "Dummy"
user1 : id = 123
object user2 {
name = "Dummy"
id = 123
}
object o1
object o2
diamond dia
object o3
o1 --> dia
o2 --> dia
dia --> o3
@enduml
@endumlSalt with aws-orange theme
@startuml
@startsalt
!theme aws-orange
{+
Just plain text
[This is my button]
() Unchecked radio
(X) Checked radio
[] Unchecked box
[X] Checked box
"Enter text here "
^This is a droplist^
}
@endsalt
@endumlSequence with aws-orange theme
@startuml
@startuml
!theme aws-orange
participant Participant as Foo
actor Actor as Foo1
boundary Boundary as Foo2
control Control as Foo3
entity Entity as Foo4
database Database as Foo5
collections Collections as Foo6
queue Queue as Foo7
Foo -> Foo1 : To actor
Foo -> Foo2 : To boundary
Foo -> Foo3 : To control
Foo -> Foo4 : To entity
Foo -> Foo5 : To database
Foo -> Foo6 : To collections
Foo -> Foo7: To queue
@enduml
@endumlState with aws-orange theme
@startuml
@startuml
!theme aws-orange
state choice1 <>
state fork1 <>
state join2 <>
state end3 <>
[*] --> choice1 : from start\nto choice
choice1 --> fork1 : from choice\nto fork
choice1 --> join2 : from choice\nto join
choice1 --> end3 : from choice\nto end
fork1 ---> State1 : from fork\nto state
fork1 --> State2 : from fork\nto state
State2 --> join2 : from state\nto join
State1 --> [*] : from state\nto end
join2 --> [*] : from join\nto end
@enduml
@enduml Theme black-knight
Activity with black-knight theme
@startuml
@startuml
!theme black-knight
start
:init;
-> test of color;
if (color?) is (red) then
:print red;
else
:print not red;
note right: no color
endif
partition End {
:end;
}
-> this is the end;
end
@enduml
@enduml Class with black-knight theme
@startuml
@startuml
!theme black-knight
abstract abstract
abstract class "abstract class"
annotation annotation
circle circle
() circle_short_form
class class
diamond diamond
<> diamond_short_form
entity entity
enum enum
interface interface
@enduml
@endumlDeployment with black-knight theme
@startuml
@startuml
!theme black-knight
actor actor
actor/ "actor/"
agent agent
artifact artifact
boundary boundary
card card
circle circle
cloud cloud
collections collections
component component
control control
database database
entity entity
file file
folder folder
frame frame
hexagon hexagon
interface interface
label label
node node
package package
person person
queue queue
rectangle rectangle
stack stack
storage storage
usecase usecase
usecase/ "usecase/"
@enduml
@endumlGantt with black-knight theme
@startuml
@startuml
!theme black-knight
[Task1] lasts 20 days
note bottom
memo1 ...
memo2 ...
explanations1 ...
explanations2 ...
end note
[Task2] lasts 4 days
[Task1] -> [Task2]
-- Separator title --
[M1] happens on 5 days after [Task1]'s end
-- end --
@enduml
@endumlMindmap with black-knight theme
@startuml
@startmindmap
!theme black-knight
+ root
**:right_1.1
right_1.2;
++ right_2
left side
-- left_1
-- left_2
**:left_3.1
left_3.2;
@endmindmap
@endumlNwdiag with black-knight theme
@startuml
@startuml
!theme black-knight
nwdiag {
network DMZ {
address = "y.x.x.x/24"
web01 [address = "y.x.x.1"];
web02 [address = "y.x.x.2"];
}
network Internal {
web01;
web02;
db01 [address = "w.w.w.z", shape = database];
}
group {
description = "long group label";
web01;
web02;
db01;
}
}
@enduml
@endumlObject with black-knight theme
@startuml
@startuml
!theme black-knight
object user1
user1 : name = "Dummy"
user1 : id = 123
object user2 {
name = "Dummy"
id = 123
}
object o1
object o2
diamond dia
object o3
o1 --> dia
o2 --> dia
dia --> o3
@enduml
@endumlSalt with black-knight theme
@startuml
@startsalt
!theme black-knight
{+
Just plain text
[This is my button]
() Unchecked radio
(X) Checked radio
[] Unchecked box
[X] Checked box
"Enter text here "
^This is a droplist^
}
@endsalt
@endumlSequence with black-knight theme
@startuml
@startuml
!theme black-knight
participant Participant as Foo
actor Actor as Foo1
boundary Boundary as Foo2
control Control as Foo3
entity Entity as Foo4
database Database as Foo5
collections Collections as Foo6
queue Queue as Foo7
Foo -> Foo1 : To actor
Foo -> Foo2 : To boundary
Foo -> Foo3 : To control
Foo -> Foo4 : To entity
Foo -> Foo5 : To database
Foo -> Foo6 : To collections
Foo -> Foo7: To queue
@enduml
@endumlState with black-knight theme
@startuml
@startuml
!theme black-knight
state choice1 <>
state fork1 <>
state join2 <>
state end3 <>
[*] --> choice1 : from start\nto choice
choice1 --> fork1 : from choice\nto fork
choice1 --> join2 : from choice\nto join
choice1 --> end3 : from choice\nto end
fork1 ---> State1 : from fork\nto state
fork1 --> State2 : from fork\nto state
State2 --> join2 : from state\nto join
State1 --> [*] : from state\nto end
join2 --> [*] : from join\nto end
@enduml
@enduml Timing with black-knight theme
@startuml
@startuml
!theme black-knight
robust "Web Browser" as WB
concise "Web User" as WU
WB is Initializing
WU is Absent
@WB
0 is idle
+200 is Processing
+100 is Waiting
WB@0 <-> @50 : {50 ms lag}
@WU
0 is Waiting
+500 is ok
@200 <-> @+150 : {150 ms}
@enduml
@endumlTheme bluegray
Activity with bluegray theme
@startuml
@startuml
!theme bluegray
start
:init;
-> test of color;
if (color?) is (red) then
:print red;
else
:print not red;
note right: no color
endif
partition End {
:end;
}
-> this is the end;
end
@enduml
@enduml Class with bluegray theme
@startuml
@startuml
!theme bluegray
abstract abstract
abstract class "abstract class"
annotation annotation
circle circle
() circle_short_form
class class
diamond diamond
<> diamond_short_form
entity entity
enum enum
interface interface
@enduml
@endumlDeployment with bluegray theme
@startuml
@startuml
!theme bluegray
actor actor
actor/ "actor/"
agent agent
artifact artifact
boundary boundary
card card
circle circle
cloud cloud
collections collections
component component
control control
database database
entity entity
file file
folder folder
frame frame
hexagon hexagon
interface interface
label label
node node
package package
person person
queue queue
rectangle rectangle
stack stack
storage storage
usecase usecase
usecase/ "usecase/"
@enduml
@endumlGantt with bluegray theme
@startuml
@startuml
!theme bluegray
[Task1] lasts 20 days
note bottom
memo1 ...
memo2 ...
explanations1 ...
explanations2 ...
end note
[Task2] lasts 4 days
[Task1] -> [Task2]
-- Separator title --
[M1] happens on 5 days after [Task1]'s end
-- end --
@enduml
@endumlMindmap with bluegray theme
@startuml
@startmindmap
!theme bluegray
+ root
**:right_1.1
right_1.2;
++ right_2
left side
-- left_1
-- left_2
**:left_3.1
left_3.2;
@endmindmap
@endumlNwdiag with bluegray theme
@startuml
@startuml
!theme bluegray
nwdiag {
network DMZ {
address = "y.x.x.x/24"
web01 [address = "y.x.x.1"];
web02 [address = "y.x.x.2"];
}
network Internal {
web01;
web02;
db01 [address = "w.w.w.z", shape = database];
}
group {
description = "long group label";
web01;
web02;
db01;
}
}
@enduml
@endumlObject with bluegray theme
@startuml
@startuml
!theme bluegray
object user1
user1 : name = "Dummy"
user1 : id = 123
object user2 {
name = "Dummy"
id = 123
}
object o1
object o2
diamond dia
object o3
o1 --> dia
o2 --> dia
dia --> o3
@enduml
@endumlSalt with bluegray theme
@startuml
@startsalt
!theme bluegray
{+
Just plain text
[This is my button]
() Unchecked radio
(X) Checked radio
[] Unchecked box
[X] Checked box
"Enter text here "
^This is a droplist^
}
@endsalt
@endumlSequence with bluegray theme
@startuml
@startuml
!theme bluegray
participant Participant as Foo
actor Actor as Foo1
boundary Boundary as Foo2
control Control as Foo3
entity Entity as Foo4
database Database as Foo5
collections Collections as Foo6
queue Queue as Foo7
Foo -> Foo1 : To actor
Foo -> Foo2 : To boundary
Foo -> Foo3 : To control
Foo -> Foo4 : To entity
Foo -> Foo5 : To database
Foo -> Foo6 : To collections
Foo -> Foo7: To queue
@enduml
@endumlState with bluegray theme
@startuml
@startuml
!theme bluegray
state choice1 <>
state fork1 <>
state join2 <>
state end3 <>
[*] --> choice1 : from start\nto choice
choice1 --> fork1 : from choice\nto fork
choice1 --> join2 : from choice\nto join
choice1 --> end3 : from choice\nto end
fork1 ---> State1 : from fork\nto state
fork1 --> State2 : from fork\nto state
State2 --> join2 : from state\nto join
State1 --> [*] : from state\nto end
join2 --> [*] : from join\nto end
@enduml
@enduml Theme blueprint
Activity with blueprint theme
@startuml
@startuml
!theme blueprint
start
:init;
-> test of color;
if (color?) is (red) then
:print red;
else
:print not red;
note right: no color
endif
partition End {
:end;
}
-> this is the end;
end
@enduml
@enduml Class with blueprint theme
@startuml
@startuml
!theme blueprint
abstract abstract
abstract class "abstract class"
annotation annotation
circle circle
() circle_short_form
class class
diamond diamond
<> diamond_short_form
entity entity
enum enum
interface interface
@enduml
@endumlDeployment with blueprint theme
@startuml
@startuml
!theme blueprint
actor actor
actor/ "actor/"
agent agent
artifact artifact
boundary boundary
card card
circle circle
cloud cloud
collections collections
component component
control control
database database
entity entity
file file
folder folder
frame frame
hexagon hexagon
interface interface
label label
node node
package package
person person
queue queue
rectangle rectangle
stack stack
storage storage
usecase usecase
usecase/ "usecase/"
@enduml
@endumlGantt with blueprint theme
@startuml
@startuml
!theme blueprint
[Task1] lasts 20 days
note bottom
memo1 ...
memo2 ...
explanations1 ...
explanations2 ...
end note
[Task2] lasts 4 days
[Task1] -> [Task2]
-- Separator title --
[M1] happens on 5 days after [Task1]'s end
-- end --
@enduml
@endumlMindmap with blueprint theme
@startuml
@startmindmap
!theme blueprint
+ root
**:right_1.1
right_1.2;
++ right_2
left side
-- left_1
-- left_2
**:left_3.1
left_3.2;
@endmindmap
@endumlNwdiag with blueprint theme
@startuml
@startuml
!theme blueprint
nwdiag {
network DMZ {
address = "y.x.x.x/24"
web01 [address = "y.x.x.1"];
web02 [address = "y.x.x.2"];
}
network Internal {
web01;
web02;
db01 [address = "w.w.w.z", shape = database];
}
group {
description = "long group label";
web01;
web02;
db01;
}
}
@enduml
@endumlObject with blueprint theme
@startuml
@startuml
!theme blueprint
object user1
user1 : name = "Dummy"
user1 : id = 123
object user2 {
name = "Dummy"
id = 123
}
object o1
object o2
diamond dia
object o3
o1 --> dia
o2 --> dia
dia --> o3
@enduml
@endumlSalt with blueprint theme
@startuml
@startsalt
!theme blueprint
{+
Just plain text
[This is my button]
() Unchecked radio
(X) Checked radio
[] Unchecked box
[X] Checked box
"Enter text here "
^This is a droplist^
}
@endsalt
@endumlSequence with blueprint theme
@startuml
@startuml
!theme blueprint
participant Participant as Foo
actor Actor as Foo1
boundary Boundary as Foo2
control Control as Foo3
entity Entity as Foo4
database Database as Foo5
collections Collections as Foo6
queue Queue as Foo7
Foo -> Foo1 : To actor
Foo -> Foo2 : To boundary
Foo -> Foo3 : To control
Foo -> Foo4 : To entity
Foo -> Foo5 : To database
Foo -> Foo6 : To collections
Foo -> Foo7: To queue
@enduml
@endumlState with blueprint theme
@startuml
@startuml
!theme blueprint
state choice1 <>
state fork1 <>
state join2 <>
state end3 <>
[*] --> choice1 : from start\nto choice
choice1 --> fork1 : from choice\nto fork
choice1 --> join2 : from choice\nto join
choice1 --> end3 : from choice\nto end
fork1 ---> State1 : from fork\nto state
fork1 --> State2 : from fork\nto state
State2 --> join2 : from state\nto join
State1 --> [*] : from state\nto end
join2 --> [*] : from join\nto end
@enduml
@enduml Theme cerulean
Activity with cerulean theme
@startuml
@startuml
!theme cerulean
start
:init;
-> test of color;
if (color?) is (red) then
:print red;
else
:print not red;
note right: no color
endif
partition End {
:end;
}
-> this is the end;
end
@enduml
@enduml Class with cerulean theme
@startuml
@startuml
!theme cerulean
abstract abstract
abstract class "abstract class"
annotation annotation
circle circle
() circle_short_form
class class
diamond diamond
<> diamond_short_form
entity entity
enum enum
interface interface
@enduml
@endumlDeployment with cerulean theme
@startuml
@startuml
!theme cerulean
actor actor
actor/ "actor/"
agent agent
artifact artifact
boundary boundary
card card
circle circle
cloud cloud
collections collections
component component
control control
database database
entity entity
file file
folder folder
frame frame
hexagon hexagon
interface interface
label label
node node
package package
person person
queue queue
rectangle rectangle
stack stack
storage storage
usecase usecase
usecase/ "usecase/"
@enduml
@endumlGantt with cerulean theme
@startuml
@startuml
!theme cerulean
[Task1] lasts 20 days
note bottom
memo1 ...
memo2 ...
explanations1 ...
explanations2 ...
end note
[Task2] lasts 4 days
[Task1] -> [Task2]
-- Separator title --
[M1] happens on 5 days after [Task1]'s end
-- end --
@enduml
@endumlMindmap with cerulean theme
@startuml
@startmindmap
!theme cerulean
+ root
**:right_1.1
right_1.2;
++ right_2
left side
-- left_1
-- left_2
**:left_3.1
left_3.2;
@endmindmap
@endumlNwdiag with cerulean theme
@startuml
@startuml
!theme cerulean
nwdiag {
network DMZ {
address = "y.x.x.x/24"
web01 [address = "y.x.x.1"];
web02 [address = "y.x.x.2"];
}
network Internal {
web01;
web02;
db01 [address = "w.w.w.z", shape = database];
}
group {
description = "long group label";
web01;
web02;
db01;
}
}
@enduml
@endumlObject with cerulean theme
@startuml
@startuml
!theme cerulean
object user1
user1 : name = "Dummy"
user1 : id = 123
object user2 {
name = "Dummy"
id = 123
}
object o1
object o2
diamond dia
object o3
o1 --> dia
o2 --> dia
dia --> o3
@enduml
@endumlSalt with cerulean theme
@startuml
@startsalt
!theme cerulean
{+
Just plain text
[This is my button]
() Unchecked radio
(X) Checked radio
[] Unchecked box
[X] Checked box
"Enter text here "
^This is a droplist^
}
@endsalt
@endumlSequence with cerulean theme
@startuml
@startuml
!theme cerulean
participant Participant as Foo
actor Actor as Foo1
boundary Boundary as Foo2
control Control as Foo3
entity Entity as Foo4
database Database as Foo5
collections Collections as Foo6
queue Queue as Foo7
Foo -> Foo1 : To actor
Foo -> Foo2 : To boundary
Foo -> Foo3 : To control
Foo -> Foo4 : To entity
Foo -> Foo5 : To database
Foo -> Foo6 : To collections
Foo -> Foo7: To queue
@enduml
@endumlState with cerulean theme
@startuml
@startuml
!theme cerulean
state choice1 <>
state fork1 <>
state join2 <>
state end3 <>
[*] --> choice1 : from start\nto choice
choice1 --> fork1 : from choice\nto fork
choice1 --> join2 : from choice\nto join
choice1 --> end3 : from choice\nto end
fork1 ---> State1 : from fork\nto state
fork1 --> State2 : from fork\nto state
State2 --> join2 : from state\nto join
State1 --> [*] : from state\nto end
join2 --> [*] : from join\nto end
@enduml
@enduml Theme cerulean-outline
Activity with cerulean-outline theme
@startuml
@startuml
!theme cerulean-outline
start
:init;
-> test of color;
if (color?) is (red) then
:print red;
else
:print not red;
note right: no color
endif
partition End {
:end;
}
-> this is the end;
end
@enduml
@enduml Class with cerulean-outline theme
@startuml
@startuml
!theme cerulean-outline
abstract abstract
abstract class "abstract class"
annotation annotation
circle circle
() circle_short_form
class class
diamond diamond
<> diamond_short_form
entity entity
enum enum
interface interface
@enduml
@endumlDeployment with cerulean-outline theme
@startuml
@startuml
!theme cerulean-outline
actor actor
actor/ "actor/"
agent agent
artifact artifact
boundary boundary
card card
circle circle
cloud cloud
collections collections
component component
control control
database database
entity entity
file file
folder folder
frame frame
hexagon hexagon
interface interface
label label
node node
package package
person person
queue queue
rectangle rectangle
stack stack
storage storage
usecase usecase
usecase/ "usecase/"
@enduml
@endumlGantt with cerulean-outline theme
@startuml
@startuml
!theme cerulean-outline
[Task1] lasts 20 days
note bottom
memo1 ...
memo2 ...
explanations1 ...
explanations2 ...
end note
[Task2] lasts 4 days
[Task1] -> [Task2]
-- Separator title --
[M1] happens on 5 days after [Task1]'s end
-- end --
@enduml
@endumlMindmap with cerulean-outline theme
@startuml
@startmindmap
!theme cerulean-outline
+ root
**:right_1.1
right_1.2;
++ right_2
left side
-- left_1
-- left_2
**:left_3.1
left_3.2;
@endmindmap
@endumlNwdiag with cerulean-outline theme
@startuml
@startuml
!theme cerulean-outline
nwdiag {
network DMZ {
address = "y.x.x.x/24"
web01 [address = "y.x.x.1"];
web02 [address = "y.x.x.2"];
}
network Internal {
web01;
web02;
db01 [address = "w.w.w.z", shape = database];
}
group {
description = "long group label";
web01;
web02;
db01;
}
}
@enduml
@endumlObject with cerulean-outline theme
@startuml
@startuml
!theme cerulean-outline
object user1
user1 : name = "Dummy"
user1 : id = 123
object user2 {
name = "Dummy"
id = 123
}
object o1
object o2
diamond dia
object o3
o1 --> dia
o2 --> dia
dia --> o3
@enduml
@endumlSalt with cerulean-outline theme
@startuml
@startsalt
!theme cerulean-outline
{+
Just plain text
[This is my button]
() Unchecked radio
(X) Checked radio
[] Unchecked box
[X] Checked box
"Enter text here "
^This is a droplist^
}
@endsalt
@endumlSequence with cerulean-outline theme
@startuml
@startuml
!theme cerulean-outline
participant Participant as Foo
actor Actor as Foo1
boundary Boundary as Foo2
control Control as Foo3
entity Entity as Foo4
database Database as Foo5
collections Collections as Foo6
queue Queue as Foo7
Foo -> Foo1 : To actor
Foo -> Foo2 : To boundary
Foo -> Foo3 : To control
Foo -> Foo4 : To entity
Foo -> Foo5 : To database
Foo -> Foo6 : To collections
Foo -> Foo7: To queue
@enduml
@endumlState with cerulean-outline theme
@startuml
@startuml
!theme cerulean-outline
state choice1 <>
state fork1 <>
state join2 <>
state end3 <>
[*] --> choice1 : from start\nto choice
choice1 --> fork1 : from choice\nto fork
choice1 --> join2 : from choice\nto join
choice1 --> end3 : from choice\nto end
fork1 ---> State1 : from fork\nto state
fork1 --> State2 : from fork\nto state
State2 --> join2 : from state\nto join
State1 --> [*] : from state\nto end
join2 --> [*] : from join\nto end
@enduml
@enduml Timing with cerulean-outline theme
@startuml
@startuml
!theme cerulean-outline
robust "Web Browser" as WB
concise "Web User" as WU
WB is Initializing
WU is Absent
@WB
0 is idle
+200 is Processing
+100 is Waiting
WB@0 <-> @50 : {50 ms lag}
@WU
0 is Waiting
+500 is ok
@200 <-> @+150 : {150 ms}
@enduml
@endumlTheme crt-amber
Activity with crt-amber theme
@startuml
@startuml
!theme crt-amber
start
:init;
-> test of color;
if (color?) is (red) then
:print red;
else
:print not red;
note right: no color
endif
partition End {
:end;
}
-> this is the end;
end
@enduml
@enduml Class with crt-amber theme
@startuml
@startuml
!theme crt-amber
abstract abstract
abstract class "abstract class"
annotation annotation
circle circle
() circle_short_form
class class
diamond diamond
<> diamond_short_form
entity entity
enum enum
interface interface
@enduml
@endumlDeployment with crt-amber theme
@startuml
@startuml
!theme crt-amber
actor actor
actor/ "actor/"
agent agent
artifact artifact
boundary boundary
card card
circle circle
cloud cloud
collections collections
component component
control control
database database
entity entity
file file
folder folder
frame frame
hexagon hexagon
interface interface
label label
node node
package package
person person
queue queue
rectangle rectangle
stack stack
storage storage
usecase usecase
usecase/ "usecase/"
@enduml
@endumlGantt with crt-amber theme
@startuml
@startuml
!theme crt-amber
[Task1] lasts 20 days
note bottom
memo1 ...
memo2 ...
explanations1 ...
explanations2 ...
end note
[Task2] lasts 4 days
[Task1] -> [Task2]
-- Separator title --
[M1] happens on 5 days after [Task1]'s end
-- end --
@enduml
@endumlMindmap with crt-amber theme
@startuml
@startmindmap
!theme crt-amber
+ root
**:right_1.1
right_1.2;
++ right_2
left side
-- left_1
-- left_2
**:left_3.1
left_3.2;
@endmindmap
@endumlNwdiag with crt-amber theme
@startuml
@startuml
!theme crt-amber
nwdiag {
network DMZ {
address = "y.x.x.x/24"
web01 [address = "y.x.x.1"];
web02 [address = "y.x.x.2"];
}
network Internal {
web01;
web02;
db01 [address = "w.w.w.z", shape = database];
}
group {
description = "long group label";
web01;
web02;
db01;
}
}
@enduml
@endumlObject with crt-amber theme
@startuml
@startuml
!theme crt-amber
object user1
user1 : name = "Dummy"
user1 : id = 123
object user2 {
name = "Dummy"
id = 123
}
object o1
object o2
diamond dia
object o3
o1 --> dia
o2 --> dia
dia --> o3
@enduml
@endumlSalt with crt-amber theme
@startuml
@startsalt
!theme crt-amber
{+
Just plain text
[This is my button]
() Unchecked radio
(X) Checked radio
[] Unchecked box
[X] Checked box
"Enter text here "
^This is a droplist^
}
@endsalt
@endumlSequence with crt-amber theme
@startuml
@startuml
!theme crt-amber
participant Participant as Foo
actor Actor as Foo1
boundary Boundary as Foo2
control Control as Foo3
entity Entity as Foo4
database Database as Foo5
collections Collections as Foo6
queue Queue as Foo7
Foo -> Foo1 : To actor
Foo -> Foo2 : To boundary
Foo -> Foo3 : To control
Foo -> Foo4 : To entity
Foo -> Foo5 : To database
Foo -> Foo6 : To collections
Foo -> Foo7: To queue
@enduml
@endumlState with crt-amber theme
@startuml
@startuml
!theme crt-amber
state choice1 <>
state fork1 <>
state join2 <>
state end3 <>
[*] --> choice1 : from start\nto choice
choice1 --> fork1 : from choice\nto fork
choice1 --> join2 : from choice\nto join
choice1 --> end3 : from choice\nto end
fork1 ---> State1 : from fork\nto state
fork1 --> State2 : from fork\nto state
State2 --> join2 : from state\nto join
State1 --> [*] : from state\nto end
join2 --> [*] : from join\nto end
@enduml
@enduml Theme crt-green
Activity with crt-green theme
@startuml
@startuml
!theme crt-green
start
:init;
-> test of color;
if (color?) is (red) then
:print red;
else
:print not red;
note right: no color
endif
partition End {
:end;
}
-> this is the end;
end
@enduml
@enduml Class with crt-green theme
@startuml
@startuml
!theme crt-green
abstract abstract
abstract class "abstract class"
annotation annotation
circle circle
() circle_short_form
class class
diamond diamond
<> diamond_short_form
entity entity
enum enum
interface interface
@enduml
@endumlDeployment with crt-green theme
@startuml
@startuml
!theme crt-green
actor actor
actor/ "actor/"
agent agent
artifact artifact
boundary boundary
card card
circle circle
cloud cloud
collections collections
component component
control control
database database
entity entity
file file
folder folder
frame frame
hexagon hexagon
interface interface
label label
node node
package package
person person
queue queue
rectangle rectangle
stack stack
storage storage
usecase usecase
usecase/ "usecase/"
@enduml
@endumlGantt with crt-green theme
@startuml
@startuml
!theme crt-green
[Task1] lasts 20 days
note bottom
memo1 ...
memo2 ...
explanations1 ...
explanations2 ...
end note
[Task2] lasts 4 days
[Task1] -> [Task2]
-- Separator title --
[M1] happens on 5 days after [Task1]'s end
-- end --
@enduml
@endumlMindmap with crt-green theme
@startuml
@startmindmap
!theme crt-green
+ root
**:right_1.1
right_1.2;
++ right_2
left side
-- left_1
-- left_2
**:left_3.1
left_3.2;
@endmindmap
@endumlNwdiag with crt-green theme
@startuml
@startuml
!theme crt-green
nwdiag {
network DMZ {
address = "y.x.x.x/24"
web01 [address = "y.x.x.1"];
web02 [address = "y.x.x.2"];
}
network Internal {
web01;
web02;
db01 [address = "w.w.w.z", shape = database];
}
group {
description = "long group label";
web01;
web02;
db01;
}
}
@enduml
@endumlObject with crt-green theme
@startuml
@startuml
!theme crt-green
object user1
user1 : name = "Dummy"
user1 : id = 123
object user2 {
name = "Dummy"
id = 123
}
object o1
object o2
diamond dia
object o3
o1 --> dia
o2 --> dia
dia --> o3
@enduml
@endumlSalt with crt-green theme
@startuml
@startsalt
!theme crt-green
{+
Just plain text
[This is my button]
() Unchecked radio
(X) Checked radio
[] Unchecked box
[X] Checked box
"Enter text here "
^This is a droplist^
}
@endsalt
@endumlSequence with crt-green theme
@startuml
@startuml
!theme crt-green
participant Participant as Foo
actor Actor as Foo1
boundary Boundary as Foo2
control Control as Foo3
entity Entity as Foo4
database Database as Foo5
collections Collections as Foo6
queue Queue as Foo7
Foo -> Foo1 : To actor
Foo -> Foo2 : To boundary
Foo -> Foo3 : To control
Foo -> Foo4 : To entity
Foo -> Foo5 : To database
Foo -> Foo6 : To collections
Foo -> Foo7: To queue
@enduml
@endumlState with crt-green theme
@startuml
@startuml
!theme crt-green
state choice1 <>
state fork1 <>
state join2 <>
state end3 <>
[*] --> choice1 : from start\nto choice
choice1 --> fork1 : from choice\nto fork
choice1 --> join2 : from choice\nto join
choice1 --> end3 : from choice\nto end
fork1 ---> State1 : from fork\nto state
fork1 --> State2 : from fork\nto state
State2 --> join2 : from state\nto join
State1 --> [*] : from state\nto end
join2 --> [*] : from join\nto end
@enduml
@enduml Theme cyborg
Activity with cyborg theme
@startuml
@startuml
!theme cyborg
start
:init;
-> test of color;
if (color?) is (red) then
:print red;
else
:print not red;
note right: no color
endif
partition End {
:end;
}
-> this is the end;
end
@enduml
@enduml Class with cyborg theme
@startuml
@startuml
!theme cyborg
abstract abstract
abstract class "abstract class"
annotation annotation
circle circle
() circle_short_form
class class
diamond diamond
<> diamond_short_form
entity entity
enum enum
interface interface
@enduml
@endumlDeployment with cyborg theme
@startuml
@startuml
!theme cyborg
actor actor
actor/ "actor/"
agent agent
artifact artifact
boundary boundary
card card
circle circle
cloud cloud
collections collections
component component
control control
database database
entity entity
file file
folder folder
frame frame
hexagon hexagon
interface interface
label label
node node
package package
person person
queue queue
rectangle rectangle
stack stack
storage storage
usecase usecase
usecase/ "usecase/"
@enduml
@endumlGantt with cyborg theme
@startuml
@startuml
!theme cyborg
[Task1] lasts 20 days
note bottom
memo1 ...
memo2 ...
explanations1 ...
explanations2 ...
end note
[Task2] lasts 4 days
[Task1] -> [Task2]
-- Separator title --
[M1] happens on 5 days after [Task1]'s end
-- end --
@enduml
@endumlMindmap with cyborg theme
@startuml
@startmindmap
!theme cyborg
+ root
**:right_1.1
right_1.2;
++ right_2
left side
-- left_1
-- left_2
**:left_3.1
left_3.2;
@endmindmap
@endumlNwdiag with cyborg theme
@startuml
@startuml
!theme cyborg
nwdiag {
network DMZ {
address = "y.x.x.x/24"
web01 [address = "y.x.x.1"];
web02 [address = "y.x.x.2"];
}
network Internal {
web01;
web02;
db01 [address = "w.w.w.z", shape = database];
}
group {
description = "long group label";
web01;
web02;
db01;
}
}
@enduml
@endumlObject with cyborg theme
@startuml
@startuml
!theme cyborg
object user1
user1 : name = "Dummy"
user1 : id = 123
object user2 {
name = "Dummy"
id = 123
}
object o1
object o2
diamond dia
object o3
o1 --> dia
o2 --> dia
dia --> o3
@enduml
@endumlSalt with cyborg theme
@startuml
@startsalt
!theme cyborg
{+
Just plain text
[This is my button]
() Unchecked radio
(X) Checked radio
[] Unchecked box
[X] Checked box
"Enter text here "
^This is a droplist^
}
@endsalt
@endumlSequence with cyborg theme
@startuml
@startuml
!theme cyborg
participant Participant as Foo
actor Actor as Foo1
boundary Boundary as Foo2
control Control as Foo3
entity Entity as Foo4
database Database as Foo5
collections Collections as Foo6
queue Queue as Foo7
Foo -> Foo1 : To actor
Foo -> Foo2 : To boundary
Foo -> Foo3 : To control
Foo -> Foo4 : To entity
Foo -> Foo5 : To database
Foo -> Foo6 : To collections
Foo -> Foo7: To queue
@enduml
@endumlState with cyborg theme
@startuml
@startuml
!theme cyborg
state choice1 <>
state fork1 <>
state join2 <>
state end3 <>
[*] --> choice1 : from start\nto choice
choice1 --> fork1 : from choice\nto fork
choice1 --> join2 : from choice\nto join
choice1 --> end3 : from choice\nto end
fork1 ---> State1 : from fork\nto state
fork1 --> State2 : from fork\nto state
State2 --> join2 : from state\nto join
State1 --> [*] : from state\nto end
join2 --> [*] : from join\nto end
@enduml
@enduml Theme cyborg-outline
Activity with cyborg-outline theme
@startuml
@startuml
!theme cyborg-outline
start
:init;
-> test of color;
if (color?) is (red) then
:print red;
else
:print not red;
note right: no color
endif
partition End {
:end;
}
-> this is the end;
end
@enduml
@enduml Class with cyborg-outline theme
@startuml
@startuml
!theme cyborg-outline
abstract abstract
abstract class "abstract class"
annotation annotation
circle circle
() circle_short_form
class class
diamond diamond
<> diamond_short_form
entity entity
enum enum
interface interface
@enduml
@endumlDeployment with cyborg-outline theme
@startuml
@startuml
!theme cyborg-outline
actor actor
actor/ "actor/"
agent agent
artifact artifact
boundary boundary
card card
circle circle
cloud cloud
collections collections
component component
control control
database database
entity entity
file file
folder folder
frame frame
hexagon hexagon
interface interface
label label
node node
package package
person person
queue queue
rectangle rectangle
stack stack
storage storage
usecase usecase
usecase/ "usecase/"
@enduml
@endumlGantt with cyborg-outline theme
@startuml
@startuml
!theme cyborg-outline
[Task1] lasts 20 days
note bottom
memo1 ...
memo2 ...
explanations1 ...
explanations2 ...
end note
[Task2] lasts 4 days
[Task1] -> [Task2]
-- Separator title --
[M1] happens on 5 days after [Task1]'s end
-- end --
@enduml
@endumlMindmap with cyborg-outline theme
@startuml
@startmindmap
!theme cyborg-outline
+ root
**:right_1.1
right_1.2;
++ right_2
left side
-- left_1
-- left_2
**:left_3.1
left_3.2;
@endmindmap
@endumlNwdiag with cyborg-outline theme
@startuml
@startuml
!theme cyborg-outline
nwdiag {
network DMZ {
address = "y.x.x.x/24"
web01 [address = "y.x.x.1"];
web02 [address = "y.x.x.2"];
}
network Internal {
web01;
web02;
db01 [address = "w.w.w.z", shape = database];
}
group {
description = "long group label";
web01;
web02;
db01;
}
}
@enduml
@endumlObject with cyborg-outline theme
@startuml
@startuml
!theme cyborg-outline
object user1
user1 : name = "Dummy"
user1 : id = 123
object user2 {
name = "Dummy"
id = 123
}
object o1
object o2
diamond dia
object o3
o1 --> dia
o2 --> dia
dia --> o3
@enduml
@endumlSalt with cyborg-outline theme
@startuml
@startsalt
!theme cyborg-outline
{+
Just plain text
[This is my button]
() Unchecked radio
(X) Checked radio
[] Unchecked box
[X] Checked box
"Enter text here "
^This is a droplist^
}
@endsalt
@endumlSequence with cyborg-outline theme
@startuml
@startuml
!theme cyborg-outline
participant Participant as Foo
actor Actor as Foo1
boundary Boundary as Foo2
control Control as Foo3
entity Entity as Foo4
database Database as Foo5
collections Collections as Foo6
queue Queue as Foo7
Foo -> Foo1 : To actor
Foo -> Foo2 : To boundary
Foo -> Foo3 : To control
Foo -> Foo4 : To entity
Foo -> Foo5 : To database
Foo -> Foo6 : To collections
Foo -> Foo7: To queue
@enduml
@endumlState with cyborg-outline theme
@startuml
@startuml
!theme cyborg-outline
state choice1 <>
state fork1 <>
state join2 <>
state end3 <>
[*] --> choice1 : from start\nto choice
choice1 --> fork1 : from choice\nto fork
choice1 --> join2 : from choice\nto join
choice1 --> end3 : from choice\nto end
fork1 ---> State1 : from fork\nto state
fork1 --> State2 : from fork\nto state
State2 --> join2 : from state\nto join
State1 --> [*] : from state\nto end
join2 --> [*] : from join\nto end
@enduml
@enduml Timing with cyborg-outline theme
@startuml
@startuml
!theme cyborg-outline
robust "Web Browser" as WB
concise "Web User" as WU
WB is Initializing
WU is Absent
@WB
0 is idle
+200 is Processing
+100 is Waiting
WB@0 <-> @50 : {50 ms lag}
@WU
0 is Waiting
+500 is ok
@200 <-> @+150 : {150 ms}
@enduml
@endumlTheme hacker
Activity with hacker theme
@startuml
@startuml
!theme hacker
start
:init;
-> test of color;
if (color?) is (red) then
:print red;
else
:print not red;
note right: no color
endif
partition End {
:end;
}
-> this is the end;
end
@enduml
@enduml Class with hacker theme
@startuml
@startuml
!theme hacker
abstract abstract
abstract class "abstract class"
annotation annotation
circle circle
() circle_short_form
class class
diamond diamond
<> diamond_short_form
entity entity
enum enum
interface interface
@enduml
@endumlDeployment with hacker theme
@startuml
@startuml
!theme hacker
actor actor
actor/ "actor/"
agent agent
artifact artifact
boundary boundary
card card
circle circle
cloud cloud
collections collections
component component
control control
database database
entity entity
file file
folder folder
frame frame
hexagon hexagon
interface interface
label label
node node
package package
person person
queue queue
rectangle rectangle
stack stack
storage storage
usecase usecase
usecase/ "usecase/"
@enduml
@endumlGantt with hacker theme
@startuml
@startuml
!theme hacker
[Task1] lasts 20 days
note bottom
memo1 ...
memo2 ...
explanations1 ...
explanations2 ...
end note
[Task2] lasts 4 days
[Task1] -> [Task2]
-- Separator title --
[M1] happens on 5 days after [Task1]'s end
-- end --
@enduml
@endumlMindmap with hacker theme
@startuml
@startmindmap
!theme hacker
+ root
**:right_1.1
right_1.2;
++ right_2
left side
-- left_1
-- left_2
**:left_3.1
left_3.2;
@endmindmap
@endumlNwdiag with hacker theme
@startuml
@startuml
!theme hacker
nwdiag {
network DMZ {
address = "y.x.x.x/24"
web01 [address = "y.x.x.1"];
web02 [address = "y.x.x.2"];
}
network Internal {
web01;
web02;
db01 [address = "w.w.w.z", shape = database];
}
group {
description = "long group label";
web01;
web02;
db01;
}
}
@enduml
@endumlObject with hacker theme
@startuml
@startuml
!theme hacker
object user1
user1 : name = "Dummy"
user1 : id = 123
object user2 {
name = "Dummy"
id = 123
}
object o1
object o2
diamond dia
object o3
o1 --> dia
o2 --> dia
dia --> o3
@enduml
@endumlSalt with hacker theme
@startuml
@startsalt
!theme hacker
{+
Just plain text
[This is my button]
() Unchecked radio
(X) Checked radio
[] Unchecked box
[X] Checked box
"Enter text here "
^This is a droplist^
}
@endsalt
@endumlSequence with hacker theme
@startuml
@startuml
!theme hacker
participant Participant as Foo
actor Actor as Foo1
boundary Boundary as Foo2
control Control as Foo3
entity Entity as Foo4
database Database as Foo5
collections Collections as Foo6
queue Queue as Foo7
Foo -> Foo1 : To actor
Foo -> Foo2 : To boundary
Foo -> Foo3 : To control
Foo -> Foo4 : To entity
Foo -> Foo5 : To database
Foo -> Foo6 : To collections
Foo -> Foo7: To queue
@enduml
@endumlState with hacker theme
@startuml
@startuml
!theme hacker
state choice1 <>
state fork1 <>
state join2 <>
state end3 <>
[*] --> choice1 : from start\nto choice
choice1 --> fork1 : from choice\nto fork
choice1 --> join2 : from choice\nto join
choice1 --> end3 : from choice\nto end
fork1 ---> State1 : from fork\nto state
fork1 --> State2 : from fork\nto state
State2 --> join2 : from state\nto join
State1 --> [*] : from state\nto end
join2 --> [*] : from join\nto end
@enduml
@enduml Theme lightgray
Activity with lightgray theme
@startuml
@startuml
!theme lightgray
start
:init;
-> test of color;
if (color?) is (red) then
:print red;
else
:print not red;
note right: no color
endif
partition End {
:end;
}
-> this is the end;
end
@enduml
@enduml Class with lightgray theme
@startuml
@startuml
!theme lightgray
abstract abstract
abstract class "abstract class"
annotation annotation
circle circle
() circle_short_form
class class
diamond diamond
<> diamond_short_form
entity entity
enum enum
interface interface
@enduml
@endumlDeployment with lightgray theme
@startuml
@startuml
!theme lightgray
actor actor
actor/ "actor/"
agent agent
artifact artifact
boundary boundary
card card
circle circle
cloud cloud
collections collections
component component
control control
database database
entity entity
file file
folder folder
frame frame
hexagon hexagon
interface interface
label label
node node
package package
person person
queue queue
rectangle rectangle
stack stack
storage storage
usecase usecase
usecase/ "usecase/"
@enduml
@endumlGantt with lightgray theme
@startuml
@startuml
!theme lightgray
[Task1] lasts 20 days
note bottom
memo1 ...
memo2 ...
explanations1 ...
explanations2 ...
end note
[Task2] lasts 4 days
[Task1] -> [Task2]
-- Separator title --
[M1] happens on 5 days after [Task1]'s end
-- end --
@enduml
@endumlMindmap with lightgray theme
@startuml
@startmindmap
!theme lightgray
+ root
**:right_1.1
right_1.2;
++ right_2
left side
-- left_1
-- left_2
**:left_3.1
left_3.2;
@endmindmap
@endumlNwdiag with lightgray theme
@startuml
@startuml
!theme lightgray
nwdiag {
network DMZ {
address = "y.x.x.x/24"
web01 [address = "y.x.x.1"];
web02 [address = "y.x.x.2"];
}
network Internal {
web01;
web02;
db01 [address = "w.w.w.z", shape = database];
}
group {
description = "long group label";
web01;
web02;
db01;
}
}
@enduml
@endumlObject with lightgray theme
@startuml
@startuml
!theme lightgray
object user1
user1 : name = "Dummy"
user1 : id = 123
object user2 {
name = "Dummy"
id = 123
}
object o1
object o2
diamond dia
object o3
o1 --> dia
o2 --> dia
dia --> o3
@enduml
@endumlSalt with lightgray theme
@startuml
@startsalt
!theme lightgray
{+
Just plain text
[This is my button]
() Unchecked radio
(X) Checked radio
[] Unchecked box
[X] Checked box
"Enter text here "
^This is a droplist^
}
@endsalt
@endumlSequence with lightgray theme
@startuml
@startuml
!theme lightgray
participant Participant as Foo
actor Actor as Foo1
boundary Boundary as Foo2
control Control as Foo3
entity Entity as Foo4
database Database as Foo5
collections Collections as Foo6
queue Queue as Foo7
Foo -> Foo1 : To actor
Foo -> Foo2 : To boundary
Foo -> Foo3 : To control
Foo -> Foo4 : To entity
Foo -> Foo5 : To database
Foo -> Foo6 : To collections
Foo -> Foo7: To queue
@enduml
@endumlState with lightgray theme
@startuml
@startuml
!theme lightgray
state choice1 <>
state fork1 <>
state join2 <>
state end3 <>
[*] --> choice1 : from start\nto choice
choice1 --> fork1 : from choice\nto fork
choice1 --> join2 : from choice\nto join
choice1 --> end3 : from choice\nto end
fork1 ---> State1 : from fork\nto state
fork1 --> State2 : from fork\nto state
State2 --> join2 : from state\nto join
State1 --> [*] : from state\nto end
join2 --> [*] : from join\nto end
@enduml
@enduml Theme materia
Activity with materia theme
@startuml
@startuml
!theme materia
start
:init;
-> test of color;
if (color?) is (red) then
:print red;
else
:print not red;
note right: no color
endif
partition End {
:end;
}
-> this is the end;
end
@enduml
@enduml Class with materia theme
@startuml
@startuml
!theme materia
abstract abstract
abstract class "abstract class"
annotation annotation
circle circle
() circle_short_form
class class
diamond diamond
<> diamond_short_form
entity entity
enum enum
interface interface
@enduml
@endumlDeployment with materia theme
@startuml
@startuml
!theme materia
actor actor
actor/ "actor/"
agent agent
artifact artifact
boundary boundary
card card
circle circle
cloud cloud
collections collections
component component
control control
database database
entity entity
file file
folder folder
frame frame
hexagon hexagon
interface interface
label label
node node
package package
person person
queue queue
rectangle rectangle
stack stack
storage storage
usecase usecase
usecase/ "usecase/"
@enduml
@endumlGantt with materia theme
@startuml
@startuml
!theme materia
[Task1] lasts 20 days
note bottom
memo1 ...
memo2 ...
explanations1 ...
explanations2 ...
end note
[Task2] lasts 4 days
[Task1] -> [Task2]
-- Separator title --
[M1] happens on 5 days after [Task1]'s end
-- end --
@enduml
@endumlMindmap with materia theme
@startuml
@startmindmap
!theme materia
+ root
**:right_1.1
right_1.2;
++ right_2
left side
-- left_1
-- left_2
**:left_3.1
left_3.2;
@endmindmap
@endumlNwdiag with materia theme
@startuml
@startuml
!theme materia
nwdiag {
network DMZ {
address = "y.x.x.x/24"
web01 [address = "y.x.x.1"];
web02 [address = "y.x.x.2"];
}
network Internal {
web01;
web02;
db01 [address = "w.w.w.z", shape = database];
}
group {
description = "long group label";
web01;
web02;
db01;
}
}
@enduml
@endumlObject with materia theme
@startuml
@startuml
!theme materia
object user1
user1 : name = "Dummy"
user1 : id = 123
object user2 {
name = "Dummy"
id = 123
}
object o1
object o2
diamond dia
object o3
o1 --> dia
o2 --> dia
dia --> o3
@enduml
@endumlSalt with materia theme
@startuml
@startsalt
!theme materia
{+
Just plain text
[This is my button]
() Unchecked radio
(X) Checked radio
[] Unchecked box
[X] Checked box
"Enter text here "
^This is a droplist^
}
@endsalt
@endumlSequence with materia theme
@startuml
@startuml
!theme materia
participant Participant as Foo
actor Actor as Foo1
boundary Boundary as Foo2
control Control as Foo3
entity Entity as Foo4
database Database as Foo5
collections Collections as Foo6
queue Queue as Foo7
Foo -> Foo1 : To actor
Foo -> Foo2 : To boundary
Foo -> Foo3 : To control
Foo -> Foo4 : To entity
Foo -> Foo5 : To database
Foo -> Foo6 : To collections
Foo -> Foo7: To queue
@enduml
@endumlState with materia theme
@startuml
@startuml
!theme materia
state choice1 <>
state fork1 <>
state join2 <>
state end3 <>
[*] --> choice1 : from start\nto choice
choice1 --> fork1 : from choice\nto fork
choice1 --> join2 : from choice\nto join
choice1 --> end3 : from choice\nto end
fork1 ---> State1 : from fork\nto state
fork1 --> State2 : from fork\nto state
State2 --> join2 : from state\nto join
State1 --> [*] : from state\nto end
join2 --> [*] : from join\nto end
@enduml
@enduml Theme materia-outline
Activity with materia-outline theme
@startuml
@startuml
!theme materia-outline
start
:init;
-> test of color;
if (color?) is (red) then
:print red;
else
:print not red;
note right: no color
endif
partition End {
:end;
}
-> this is the end;
end
@enduml
@enduml Class with materia-outline theme
@startuml
@startuml
!theme materia-outline
abstract abstract
abstract class "abstract class"
annotation annotation
circle circle
() circle_short_form
class class
diamond diamond
<> diamond_short_form
entity entity
enum enum
interface interface
@enduml
@endumlDeployment with materia-outline theme
@startuml
@startuml
!theme materia-outline
actor actor
actor/ "actor/"
agent agent
artifact artifact
boundary boundary
card card
circle circle
cloud cloud
collections collections
component component
control control
database database
entity entity
file file
folder folder
frame frame
hexagon hexagon
interface interface
label label
node node
package package
person person
queue queue
rectangle rectangle
stack stack
storage storage
usecase usecase
usecase/ "usecase/"
@enduml
@endumlGantt with materia-outline theme
@startuml
@startuml
!theme materia-outline
[Task1] lasts 20 days
note bottom
memo1 ...
memo2 ...
explanations1 ...
explanations2 ...
end note
[Task2] lasts 4 days
[Task1] -> [Task2]
-- Separator title --
[M1] happens on 5 days after [Task1]'s end
-- end --
@enduml
@endumlMindmap with materia-outline theme
@startuml
@startmindmap
!theme materia-outline
+ root
**:right_1.1
right_1.2;
++ right_2
left side
-- left_1
-- left_2
**:left_3.1
left_3.2;
@endmindmap
@endumlNwdiag with materia-outline theme
@startuml
@startuml
!theme materia-outline
nwdiag {
network DMZ {
address = "y.x.x.x/24"
web01 [address = "y.x.x.1"];
web02 [address = "y.x.x.2"];
}
network Internal {
web01;
web02;
db01 [address = "w.w.w.z", shape = database];
}
group {
description = "long group label";
web01;
web02;
db01;
}
}
@enduml
@endumlObject with materia-outline theme
@startuml
@startuml
!theme materia-outline
object user1
user1 : name = "Dummy"
user1 : id = 123
object user2 {
name = "Dummy"
id = 123
}
object o1
object o2
diamond dia
object o3
o1 --> dia
o2 --> dia
dia --> o3
@enduml
@endumlSalt with materia-outline theme
@startuml
@startsalt
!theme materia-outline
{+
Just plain text
[This is my button]
() Unchecked radio
(X) Checked radio
[] Unchecked box
[X] Checked box
"Enter text here "
^This is a droplist^
}
@endsalt
@endumlSequence with materia-outline theme
@startuml
@startuml
!theme materia-outline
participant Participant as Foo
actor Actor as Foo1
boundary Boundary as Foo2
control Control as Foo3
entity Entity as Foo4
database Database as Foo5
collections Collections as Foo6
queue Queue as Foo7
Foo -> Foo1 : To actor
Foo -> Foo2 : To boundary
Foo -> Foo3 : To control
Foo -> Foo4 : To entity
Foo -> Foo5 : To database
Foo -> Foo6 : To collections
Foo -> Foo7: To queue
@enduml
@endumlState with materia-outline theme
@startuml
@startuml
!theme materia-outline
state choice1 <>
state fork1 <>
state join2 <>
state end3 <>
[*] --> choice1 : from start\nto choice
choice1 --> fork1 : from choice\nto fork
choice1 --> join2 : from choice\nto join
choice1 --> end3 : from choice\nto end
fork1 ---> State1 : from fork\nto state
fork1 --> State2 : from fork\nto state
State2 --> join2 : from state\nto join
State1 --> [*] : from state\nto end
join2 --> [*] : from join\nto end
@enduml
@enduml Timing with materia-outline theme
@startuml
@startuml
!theme materia-outline
robust "Web Browser" as WB
concise "Web User" as WU
WB is Initializing
WU is Absent
@WB
0 is idle
+200 is Processing
+100 is Waiting
WB@0 <-> @50 : {50 ms lag}
@WU
0 is Waiting
+500 is ok
@200 <-> @+150 : {150 ms}
@enduml
@endumlTheme metal
Activity with metal theme
@startuml
@startuml
!theme metal
start
:init;
-> test of color;
if (color?) is (red) then
:print red;
else
:print not red;
note right: no color
endif
partition End {
:end;
}
-> this is the end;
end
@enduml
@enduml Class with metal theme
@startuml
@startuml
!theme metal
abstract abstract
abstract class "abstract class"
annotation annotation
circle circle
() circle_short_form
class class
diamond diamond
<> diamond_short_form
entity entity
enum enum
interface interface
@enduml
@endumlDeployment with metal theme
@startuml
@startuml
!theme metal
actor actor
actor/ "actor/"
agent agent
artifact artifact
boundary boundary
card card
circle circle
cloud cloud
collections collections
component component
control control
database database
entity entity
file file
folder folder
frame frame
hexagon hexagon
interface interface
label label
node node
package package
person person
queue queue
rectangle rectangle
stack stack
storage storage
usecase usecase
usecase/ "usecase/"
@enduml
@endumlGantt with metal theme
@startuml
@startuml
!theme metal
[Task1] lasts 20 days
note bottom
memo1 ...
memo2 ...
explanations1 ...
explanations2 ...
end note
[Task2] lasts 4 days
[Task1] -> [Task2]
-- Separator title --
[M1] happens on 5 days after [Task1]'s end
-- end --
@enduml
@endumlMindmap with metal theme
@startuml
@startmindmap
!theme metal
+ root
**:right_1.1
right_1.2;
++ right_2
left side
-- left_1
-- left_2
**:left_3.1
left_3.2;
@endmindmap
@endumlNwdiag with metal theme
@startuml
@startuml
!theme metal
nwdiag {
network DMZ {
address = "y.x.x.x/24"
web01 [address = "y.x.x.1"];
web02 [address = "y.x.x.2"];
}
network Internal {
web01;
web02;
db01 [address = "w.w.w.z", shape = database];
}
group {
description = "long group label";
web01;
web02;
db01;
}
}
@enduml
@endumlObject with metal theme
@startuml
@startuml
!theme metal
object user1
user1 : name = "Dummy"
user1 : id = 123
object user2 {
name = "Dummy"
id = 123
}
object o1
object o2
diamond dia
object o3
o1 --> dia
o2 --> dia
dia --> o3
@enduml
@endumlSalt with metal theme
@startuml
@startsalt
!theme metal
{+
Just plain text
[This is my button]
() Unchecked radio
(X) Checked radio
[] Unchecked box
[X] Checked box
"Enter text here "
^This is a droplist^
}
@endsalt
@endumlSequence with metal theme
@startuml
@startuml
!theme metal
participant Participant as Foo
actor Actor as Foo1
boundary Boundary as Foo2
control Control as Foo3
entity Entity as Foo4
database Database as Foo5
collections Collections as Foo6
queue Queue as Foo7
Foo -> Foo1 : To actor
Foo -> Foo2 : To boundary
Foo -> Foo3 : To control
Foo -> Foo4 : To entity
Foo -> Foo5 : To database
Foo -> Foo6 : To collections
Foo -> Foo7: To queue
@enduml
@endumlState with metal theme
@startuml
@startuml
!theme metal
state choice1 <>
state fork1 <>
state join2 <>
state end3 <>
[*] --> choice1 : from start\nto choice
choice1 --> fork1 : from choice\nto fork
choice1 --> join2 : from choice\nto join
choice1 --> end3 : from choice\nto end
fork1 ---> State1 : from fork\nto state
fork1 --> State2 : from fork\nto state
State2 --> join2 : from state\nto join
State1 --> [*] : from state\nto end
join2 --> [*] : from join\nto end
@enduml
@enduml Theme mimeograph
Activity with mimeograph theme
@startuml
@startuml
!theme mimeograph
start
:init;
-> test of color;
if (color?) is (red) then
:print red;
else
:print not red;
note right: no color
endif
partition End {
:end;
}
-> this is the end;
end
@enduml
@enduml Class with mimeograph theme
@startuml
@startuml
!theme mimeograph
abstract abstract
abstract class "abstract class"
annotation annotation
circle circle
() circle_short_form
class class
diamond diamond
<> diamond_short_form
entity entity
enum enum
interface interface
@enduml
@endumlDeployment with mimeograph theme
@startuml
@startuml
!theme mimeograph
actor actor
actor/ "actor/"
agent agent
artifact artifact
boundary boundary
card card
circle circle
cloud cloud
collections collections
component component
control control
database database
entity entity
file file
folder folder
frame frame
hexagon hexagon
interface interface
label label
node node
package package
person person
queue queue
rectangle rectangle
stack stack
storage storage
usecase usecase
usecase/ "usecase/"
@enduml
@endumlGantt with mimeograph theme
@startuml
@startuml
!theme mimeograph
[Task1] lasts 20 days
note bottom
memo1 ...
memo2 ...
explanations1 ...
explanations2 ...
end note
[Task2] lasts 4 days
[Task1] -> [Task2]
-- Separator title --
[M1] happens on 5 days after [Task1]'s end
-- end --
@enduml
@endumlMindmap with mimeograph theme
@startuml
@startmindmap
!theme mimeograph
+ root
**:right_1.1
right_1.2;
++ right_2
left side
-- left_1
-- left_2
**:left_3.1
left_3.2;
@endmindmap
@endumlNwdiag with mimeograph theme
@startuml
@startuml
!theme mimeograph
nwdiag {
network DMZ {
address = "y.x.x.x/24"
web01 [address = "y.x.x.1"];
web02 [address = "y.x.x.2"];
}
network Internal {
web01;
web02;
db01 [address = "w.w.w.z", shape = database];
}
group {
description = "long group label";
web01;
web02;
db01;
}
}
@enduml
@endumlObject with mimeograph theme
@startuml
@startuml
!theme mimeograph
object user1
user1 : name = "Dummy"
user1 : id = 123
object user2 {
name = "Dummy"
id = 123
}
object o1
object o2
diamond dia
object o3
o1 --> dia
o2 --> dia
dia --> o3
@enduml
@endumlSalt with mimeograph theme
@startuml
@startsalt
!theme mimeograph
{+
Just plain text
[This is my button]
() Unchecked radio
(X) Checked radio
[] Unchecked box
[X] Checked box
"Enter text here "
^This is a droplist^
}
@endsalt
@endumlSequence with mimeograph theme
@startuml
@startuml
!theme mimeograph
participant Participant as Foo
actor Actor as Foo1
boundary Boundary as Foo2
control Control as Foo3
entity Entity as Foo4
database Database as Foo5
collections Collections as Foo6
queue Queue as Foo7
Foo -> Foo1 : To actor
Foo -> Foo2 : To boundary
Foo -> Foo3 : To control
Foo -> Foo4 : To entity
Foo -> Foo5 : To database
Foo -> Foo6 : To collections
Foo -> Foo7: To queue
@enduml
@endumlState with mimeograph theme
@startuml
@startuml
!theme mimeograph
state choice1 <>
state fork1 <>
state join2 <>
state end3 <>
[*] --> choice1 : from start\nto choice
choice1 --> fork1 : from choice\nto fork
choice1 --> join2 : from choice\nto join
choice1 --> end3 : from choice\nto end
fork1 ---> State1 : from fork\nto state
fork1 --> State2 : from fork\nto state
State2 --> join2 : from state\nto join
State1 --> [*] : from state\nto end
join2 --> [*] : from join\nto end
@enduml
@enduml Theme minty
Activity with minty theme
@startuml
@startuml
!theme minty
start
:init;
-> test of color;
if (color?) is (red) then
:print red;
else
:print not red;
note right: no color
endif
partition End {
:end;
}
-> this is the end;
end
@enduml
@enduml Class with minty theme
@startuml
@startuml
!theme minty
abstract abstract
abstract class "abstract class"
annotation annotation
circle circle
() circle_short_form
class class
diamond diamond
<> diamond_short_form
entity entity
enum enum
interface interface
@enduml
@endumlDeployment with minty theme
@startuml
@startuml
!theme minty
actor actor
actor/ "actor/"
agent agent
artifact artifact
boundary boundary
card card
circle circle
cloud cloud
collections collections
component component
control control
database database
entity entity
file file
folder folder
frame frame
hexagon hexagon
interface interface
label label
node node
package package
person person
queue queue
rectangle rectangle
stack stack
storage storage
usecase usecase
usecase/ "usecase/"
@enduml
@endumlGantt with minty theme
@startuml
@startuml
!theme minty
[Task1] lasts 20 days
note bottom
memo1 ...
memo2 ...
explanations1 ...
explanations2 ...
end note
[Task2] lasts 4 days
[Task1] -> [Task2]
-- Separator title --
[M1] happens on 5 days after [Task1]'s end
-- end --
@enduml
@endumlMindmap with minty theme
@startuml
@startmindmap
!theme minty
+ root
**:right_1.1
right_1.2;
++ right_2
left side
-- left_1
-- left_2
**:left_3.1
left_3.2;
@endmindmap
@endumlNwdiag with minty theme
@startuml
@startuml
!theme minty
nwdiag {
network DMZ {
address = "y.x.x.x/24"
web01 [address = "y.x.x.1"];
web02 [address = "y.x.x.2"];
}
network Internal {
web01;
web02;
db01 [address = "w.w.w.z", shape = database];
}
group {
description = "long group label";
web01;
web02;
db01;
}
}
@enduml
@endumlObject with minty theme
@startuml
@startuml
!theme minty
object user1
user1 : name = "Dummy"
user1 : id = 123
object user2 {
name = "Dummy"
id = 123
}
object o1
object o2
diamond dia
object o3
o1 --> dia
o2 --> dia
dia --> o3
@enduml
@endumlSalt with minty theme
@startuml
@startsalt
!theme minty
{+
Just plain text
[This is my button]
() Unchecked radio
(X) Checked radio
[] Unchecked box
[X] Checked box
"Enter text here "
^This is a droplist^
}
@endsalt
@endumlSequence with minty theme
@startuml
@startuml
!theme minty
participant Participant as Foo
actor Actor as Foo1
boundary Boundary as Foo2
control Control as Foo3
entity Entity as Foo4
database Database as Foo5
collections Collections as Foo6
queue Queue as Foo7
Foo -> Foo1 : To actor
Foo -> Foo2 : To boundary
Foo -> Foo3 : To control
Foo -> Foo4 : To entity
Foo -> Foo5 : To database
Foo -> Foo6 : To collections
Foo -> Foo7: To queue
@enduml
@endumlState with minty theme
@startuml
@startuml
!theme minty
state choice1 <>
state fork1 <>
state join2 <>
state end3 <>
[*] --> choice1 : from start\nto choice
choice1 --> fork1 : from choice\nto fork
choice1 --> join2 : from choice\nto join
choice1 --> end3 : from choice\nto end
fork1 ---> State1 : from fork\nto state
fork1 --> State2 : from fork\nto state
State2 --> join2 : from state\nto join
State1 --> [*] : from state\nto end
join2 --> [*] : from join\nto end
@enduml
@enduml Theme plain
Activity with plain theme
@startuml
@startuml
!theme plain
start
:init;
-> test of color;
if (color?) is (red) then
:print red;
else
:print not red;
note right: no color
endif
partition End {
:end;
}
-> this is the end;
end
@enduml
@enduml Class with plain theme
@startuml
@startuml
!theme plain
abstract abstract
abstract class "abstract class"
annotation annotation
circle circle
() circle_short_form
class class
diamond diamond
<> diamond_short_form
entity entity
enum enum
interface interface
@enduml
@endumlDeployment with plain theme
@startuml
@startuml
!theme plain
actor actor
actor/ "actor/"
agent agent
artifact artifact
boundary boundary
card card
circle circle
cloud cloud
collections collections
component component
control control
database database
entity entity
file file
folder folder
frame frame
hexagon hexagon
interface interface
label label
node node
package package
person person
queue queue
rectangle rectangle
stack stack
storage storage
usecase usecase
usecase/ "usecase/"
@enduml
@endumlGantt with plain theme
@startuml
@startuml
!theme plain
[Task1] lasts 20 days
note bottom
memo1 ...
memo2 ...
explanations1 ...
explanations2 ...
end note
[Task2] lasts 4 days
[Task1] -> [Task2]
-- Separator title --
[M1] happens on 5 days after [Task1]'s end
-- end --
@enduml
@endumlMindmap with plain theme
@startuml
@startmindmap
!theme plain
+ root
**:right_1.1
right_1.2;
++ right_2
left side
-- left_1
-- left_2
**:left_3.1
left_3.2;
@endmindmap
@endumlNwdiag with plain theme
@startuml
@startuml
!theme plain
nwdiag {
network DMZ {
address = "y.x.x.x/24"
web01 [address = "y.x.x.1"];
web02 [address = "y.x.x.2"];
}
network Internal {
web01;
web02;
db01 [address = "w.w.w.z", shape = database];
}
group {
description = "long group label";
web01;
web02;
db01;
}
}
@enduml
@endumlObject with plain theme
@startuml
@startuml
!theme plain
object user1
user1 : name = "Dummy"
user1 : id = 123
object user2 {
name = "Dummy"
id = 123
}
object o1
object o2
diamond dia
object o3
o1 --> dia
o2 --> dia
dia --> o3
@enduml
@endumlSalt with plain theme
@startuml
@startsalt
!theme plain
{+
Just plain text
[This is my button]
() Unchecked radio
(X) Checked radio
[] Unchecked box
[X] Checked box
"Enter text here "
^This is a droplist^
}
@endsalt
@endumlSequence with plain theme
@startuml
@startuml
!theme plain
participant Participant as Foo
actor Actor as Foo1
boundary Boundary as Foo2
control Control as Foo3
entity Entity as Foo4
database Database as Foo5
collections Collections as Foo6
queue Queue as Foo7
Foo -> Foo1 : To actor
Foo -> Foo2 : To boundary
Foo -> Foo3 : To control
Foo -> Foo4 : To entity
Foo -> Foo5 : To database
Foo -> Foo6 : To collections
Foo -> Foo7: To queue
@enduml
@endumlState with plain theme
@startuml
@startuml
!theme plain
state choice1 <>
state fork1 <>
state join2 <>
state end3 <>
[*] --> choice1 : from start\nto choice
choice1 --> fork1 : from choice\nto fork
choice1 --> join2 : from choice\nto join
choice1 --> end3 : from choice\nto end
fork1 ---> State1 : from fork\nto state
fork1 --> State2 : from fork\nto state
State2 --> join2 : from state\nto join
State1 --> [*] : from state\nto end
join2 --> [*] : from join\nto end
@enduml
@enduml Theme resume-light
Activity with resume-light theme
@startuml
@startuml
!theme resume-light
start
:init;
-> test of color;
if (color?) is (red) then
:print red;
else
:print not red;
note right: no color
endif
partition End {
:end;
}
-> this is the end;
end
@enduml
@enduml Class with resume-light theme
@startuml
@startuml
!theme resume-light
abstract abstract
abstract class "abstract class"
annotation annotation
circle circle
() circle_short_form
class class
diamond diamond
<> diamond_short_form
entity entity
enum enum
interface interface
@enduml
@endumlDeployment with resume-light theme
@startuml
@startuml
!theme resume-light
actor actor
actor/ "actor/"
agent agent
artifact artifact
boundary boundary
card card
circle circle
cloud cloud
collections collections
component component
control control
database database
entity entity
file file
folder folder
frame frame
hexagon hexagon
interface interface
label label
node node
package package
person person
queue queue
rectangle rectangle
stack stack
storage storage
usecase usecase
usecase/ "usecase/"
@enduml
@endumlGantt with resume-light theme
@startuml
@startuml
!theme resume-light
[Task1] lasts 20 days
note bottom
memo1 ...
memo2 ...
explanations1 ...
explanations2 ...
end note
[Task2] lasts 4 days
[Task1] -> [Task2]
-- Separator title --
[M1] happens on 5 days after [Task1]'s end
-- end --
@enduml
@endumlMindmap with resume-light theme
@startuml
@startmindmap
!theme resume-light
+ root
**:right_1.1
right_1.2;
++ right_2
left side
-- left_1
-- left_2
**:left_3.1
left_3.2;
@endmindmap
@endumlNwdiag with resume-light theme
@startuml
@startuml
!theme resume-light
nwdiag {
network DMZ {
address = "y.x.x.x/24"
web01 [address = "y.x.x.1"];
web02 [address = "y.x.x.2"];
}
network Internal {
web01;
web02;
db01 [address = "w.w.w.z", shape = database];
}
group {
description = "long group label";
web01;
web02;
db01;
}
}
@enduml
@endumlObject with resume-light theme
@startuml
@startuml
!theme resume-light
object user1
user1 : name = "Dummy"
user1 : id = 123
object user2 {
name = "Dummy"
id = 123
}
object o1
object o2
diamond dia
object o3
o1 --> dia
o2 --> dia
dia --> o3
@enduml
@endumlSalt with resume-light theme
@startuml
@startsalt
!theme resume-light
{+
Just plain text
[This is my button]
() Unchecked radio
(X) Checked radio
[] Unchecked box
[X] Checked box
"Enter text here "
^This is a droplist^
}
@endsalt
@endumlSequence with resume-light theme
@startuml
@startuml
!theme resume-light
participant Participant as Foo
actor Actor as Foo1
boundary Boundary as Foo2
control Control as Foo3
entity Entity as Foo4
database Database as Foo5
collections Collections as Foo6
queue Queue as Foo7
Foo -> Foo1 : To actor
Foo -> Foo2 : To boundary
Foo -> Foo3 : To control
Foo -> Foo4 : To entity
Foo -> Foo5 : To database
Foo -> Foo6 : To collections
Foo -> Foo7: To queue
@enduml
@endumlState with resume-light theme
@startuml
@startuml
!theme resume-light
state choice1 <>
state fork1 <>
state join2 <>
state end3 <>
[*] --> choice1 : from start\nto choice
choice1 --> fork1 : from choice\nto fork
choice1 --> join2 : from choice\nto join
choice1 --> end3 : from choice\nto end
fork1 ---> State1 : from fork\nto state
fork1 --> State2 : from fork\nto state
State2 --> join2 : from state\nto join
State1 --> [*] : from state\nto end
join2 --> [*] : from join\nto end
@enduml
@enduml Timing with resume-light theme
@startuml
@startuml
!theme resume-light
robust "Web Browser" as WB
concise "Web User" as WU
WB is Initializing
WU is Absent
@WB
0 is idle
+200 is Processing
+100 is Waiting
WB@0 <-> @50 : {50 ms lag}
@WU
0 is Waiting
+500 is ok
@200 <-> @+150 : {150 ms}
@enduml
@endumlTheme sandstone
Activity with sandstone theme
@startuml
@startuml
!theme sandstone
start
:init;
-> test of color;
if (color?) is (red) then
:print red;
else
:print not red;
note right: no color
endif
partition End {
:end;
}
-> this is the end;
end
@enduml
@enduml Class with sandstone theme
@startuml
@startuml
!theme sandstone
abstract abstract
abstract class "abstract class"
annotation annotation
circle circle
() circle_short_form
class class
diamond diamond
<> diamond_short_form
entity entity
enum enum
interface interface
@enduml
@endumlDeployment with sandstone theme
@startuml
@startuml
!theme sandstone
actor actor
actor/ "actor/"
agent agent
artifact artifact
boundary boundary
card card
circle circle
cloud cloud
collections collections
component component
control control
database database
entity entity
file file
folder folder
frame frame
hexagon hexagon
interface interface
label label
node node
package package
person person
queue queue
rectangle rectangle
stack stack
storage storage
usecase usecase
usecase/ "usecase/"
@enduml
@endumlGantt with sandstone theme
@startuml
@startuml
!theme sandstone
[Task1] lasts 20 days
note bottom
memo1 ...
memo2 ...
explanations1 ...
explanations2 ...
end note
[Task2] lasts 4 days
[Task1] -> [Task2]
-- Separator title --
[M1] happens on 5 days after [Task1]'s end
-- end --
@enduml
@endumlMindmap with sandstone theme
@startuml
@startmindmap
!theme sandstone
+ root
**:right_1.1
right_1.2;
++ right_2
left side
-- left_1
-- left_2
**:left_3.1
left_3.2;
@endmindmap
@endumlNwdiag with sandstone theme
@startuml
@startuml
!theme sandstone
nwdiag {
network DMZ {
address = "y.x.x.x/24"
web01 [address = "y.x.x.1"];
web02 [address = "y.x.x.2"];
}
network Internal {
web01;
web02;
db01 [address = "w.w.w.z", shape = database];
}
group {
description = "long group label";
web01;
web02;
db01;
}
}
@enduml
@endumlObject with sandstone theme
@startuml
@startuml
!theme sandstone
object user1
user1 : name = "Dummy"
user1 : id = 123
object user2 {
name = "Dummy"
id = 123
}
object o1
object o2
diamond dia
object o3
o1 --> dia
o2 --> dia
dia --> o3
@enduml
@endumlSalt with sandstone theme
@startuml
@startsalt
!theme sandstone
{+
Just plain text
[This is my button]
() Unchecked radio
(X) Checked radio
[] Unchecked box
[X] Checked box
"Enter text here "
^This is a droplist^
}
@endsalt
@endumlSequence with sandstone theme
@startuml
@startuml
!theme sandstone
participant Participant as Foo
actor Actor as Foo1
boundary Boundary as Foo2
control Control as Foo3
entity Entity as Foo4
database Database as Foo5
collections Collections as Foo6
queue Queue as Foo7
Foo -> Foo1 : To actor
Foo -> Foo2 : To boundary
Foo -> Foo3 : To control
Foo -> Foo4 : To entity
Foo -> Foo5 : To database
Foo -> Foo6 : To collections
Foo -> Foo7: To queue
@enduml
@endumlState with sandstone theme
@startuml
@startuml
!theme sandstone
state choice1 <>
state fork1 <>
state join2 <>
state end3 <>
[*] --> choice1 : from start\nto choice
choice1 --> fork1 : from choice\nto fork
choice1 --> join2 : from choice\nto join
choice1 --> end3 : from choice\nto end
fork1 ---> State1 : from fork\nto state
fork1 --> State2 : from fork\nto state
State2 --> join2 : from state\nto join
State1 --> [*] : from state\nto end
join2 --> [*] : from join\nto end
@enduml
@enduml Theme silver
Activity with silver theme
@startuml
@startuml
!theme silver
start
:init;
-> test of color;
if (color?) is (red) then
:print red;
else
:print not red;
note right: no color
endif
partition End {
:end;
}
-> this is the end;
end
@enduml
@enduml Class with silver theme
@startuml
@startuml
!theme silver
abstract abstract
abstract class "abstract class"
annotation annotation
circle circle
() circle_short_form
class class
diamond diamond
<> diamond_short_form
entity entity
enum enum
interface interface
@enduml
@endumlDeployment with silver theme
@startuml
@startuml
!theme silver
actor actor
actor/ "actor/"
agent agent
artifact artifact
boundary boundary
card card
circle circle
cloud cloud
collections collections
component component
control control
database database
entity entity
file file
folder folder
frame frame
hexagon hexagon
interface interface
label label
node node
package package
person person
queue queue
rectangle rectangle
stack stack
storage storage
usecase usecase
usecase/ "usecase/"
@enduml
@endumlGantt with silver theme
@startuml
@startuml
!theme silver
[Task1] lasts 20 days
note bottom
memo1 ...
memo2 ...
explanations1 ...
explanations2 ...
end note
[Task2] lasts 4 days
[Task1] -> [Task2]
-- Separator title --
[M1] happens on 5 days after [Task1]'s end
-- end --
@enduml
@endumlMindmap with silver theme
@startuml
@startmindmap
!theme silver
+ root
**:right_1.1
right_1.2;
++ right_2
left side
-- left_1
-- left_2
**:left_3.1
left_3.2;
@endmindmap
@endumlNwdiag with silver theme
@startuml
@startuml
!theme silver
nwdiag {
network DMZ {
address = "y.x.x.x/24"
web01 [address = "y.x.x.1"];
web02 [address = "y.x.x.2"];
}
network Internal {
web01;
web02;
db01 [address = "w.w.w.z", shape = database];
}
group {
description = "long group label";
web01;
web02;
db01;
}
}
@enduml
@endumlObject with silver theme
@startuml
@startuml
!theme silver
object user1
user1 : name = "Dummy"
user1 : id = 123
object user2 {
name = "Dummy"
id = 123
}
object o1
object o2
diamond dia
object o3
o1 --> dia
o2 --> dia
dia --> o3
@enduml
@endumlSalt with silver theme
@startuml
@startsalt
!theme silver
{+
Just plain text
[This is my button]
() Unchecked radio
(X) Checked radio
[] Unchecked box
[X] Checked box
"Enter text here "
^This is a droplist^
}
@endsalt
@endumlSequence with silver theme
@startuml
@startuml
!theme silver
participant Participant as Foo
actor Actor as Foo1
boundary Boundary as Foo2
control Control as Foo3
entity Entity as Foo4
database Database as Foo5
collections Collections as Foo6
queue Queue as Foo7
Foo -> Foo1 : To actor
Foo -> Foo2 : To boundary
Foo -> Foo3 : To control
Foo -> Foo4 : To entity
Foo -> Foo5 : To database
Foo -> Foo6 : To collections
Foo -> Foo7: To queue
@enduml
@endumlState with silver theme
@startuml
@startuml
!theme silver
state choice1 <>
state fork1 <>
state join2 <>
state end3 <>
[*] --> choice1 : from start\nto choice
choice1 --> fork1 : from choice\nto fork
choice1 --> join2 : from choice\nto join
choice1 --> end3 : from choice\nto end
fork1 ---> State1 : from fork\nto state
fork1 --> State2 : from fork\nto state
State2 --> join2 : from state\nto join
State1 --> [*] : from state\nto end
join2 --> [*] : from join\nto end
@enduml
@enduml Theme sketchy
Activity with sketchy theme
@startuml
@startuml
!theme sketchy
start
:init;
-> test of color;
if (color?) is (red) then
:print red;
else
:print not red;
note right: no color
endif
partition End {
:end;
}
-> this is the end;
end
@enduml
@enduml Class with sketchy theme
@startuml
@startuml
!theme sketchy
abstract abstract
abstract class "abstract class"
annotation annotation
circle circle
() circle_short_form
class class
diamond diamond
<> diamond_short_form
entity entity
enum enum
interface interface
@enduml
@endumlDeployment with sketchy theme
@startuml
@startuml
!theme sketchy
actor actor
actor/ "actor/"
agent agent
artifact artifact
boundary boundary
card card
circle circle
cloud cloud
collections collections
component component
control control
database database
entity entity
file file
folder folder
frame frame
hexagon hexagon
interface interface
label label
node node
package package
person person
queue queue
rectangle rectangle
stack stack
storage storage
usecase usecase
usecase/ "usecase/"
@enduml
@endumlGantt with sketchy theme
@startuml
@startuml
!theme sketchy
[Task1] lasts 20 days
note bottom
memo1 ...
memo2 ...
explanations1 ...
explanations2 ...
end note
[Task2] lasts 4 days
[Task1] -> [Task2]
-- Separator title --
[M1] happens on 5 days after [Task1]'s end
-- end --
@enduml
@endumlMindmap with sketchy theme
@startuml
@startmindmap
!theme sketchy
+ root
**:right_1.1
right_1.2;
++ right_2
left side
-- left_1
-- left_2
**:left_3.1
left_3.2;
@endmindmap
@endumlNwdiag with sketchy theme
@startuml
@startuml
!theme sketchy
nwdiag {
network DMZ {
address = "y.x.x.x/24"
web01 [address = "y.x.x.1"];
web02 [address = "y.x.x.2"];
}
network Internal {
web01;
web02;
db01 [address = "w.w.w.z", shape = database];
}
group {
description = "long group label";
web01;
web02;
db01;
}
}
@enduml
@endumlObject with sketchy theme
@startuml
@startuml
!theme sketchy
object user1
user1 : name = "Dummy"
user1 : id = 123
object user2 {
name = "Dummy"
id = 123
}
object o1
object o2
diamond dia
object o3
o1 --> dia
o2 --> dia
dia --> o3
@enduml
@endumlSalt with sketchy theme
@startuml
@startsalt
!theme sketchy
{+
Just plain text
[This is my button]
() Unchecked radio
(X) Checked radio
[] Unchecked box
[X] Checked box
"Enter text here "
^This is a droplist^
}
@endsalt
@endumlSequence with sketchy theme
@startuml
@startuml
!theme sketchy
participant Participant as Foo
actor Actor as Foo1
boundary Boundary as Foo2
control Control as Foo3
entity Entity as Foo4
database Database as Foo5
collections Collections as Foo6
queue Queue as Foo7
Foo -> Foo1 : To actor
Foo -> Foo2 : To boundary
Foo -> Foo3 : To control
Foo -> Foo4 : To entity
Foo -> Foo5 : To database
Foo -> Foo6 : To collections
Foo -> Foo7: To queue
@enduml
@endumlState with sketchy theme
@startuml
@startuml
!theme sketchy
state choice1 <>
state fork1 <>
state join2 <>
state end3 <>
[*] --> choice1 : from start\nto choice
choice1 --> fork1 : from choice\nto fork
choice1 --> join2 : from choice\nto join
choice1 --> end3 : from choice\nto end
fork1 ---> State1 : from fork\nto state
fork1 --> State2 : from fork\nto state
State2 --> join2 : from state\nto join
State1 --> [*] : from state\nto end
join2 --> [*] : from join\nto end
@enduml
@enduml Theme sketchy-outline
Activity with sketchy-outline theme
@startuml
@startuml
!theme sketchy-outline
start
:init;
-> test of color;
if (color?) is (red) then
:print red;
else
:print not red;
note right: no color
endif
partition End {
:end;
}
-> this is the end;
end
@enduml
@enduml Class with sketchy-outline theme
@startuml
@startuml
!theme sketchy-outline
abstract abstract
abstract class "abstract class"
annotation annotation
circle circle
() circle_short_form
class class
diamond diamond
<> diamond_short_form
entity entity
enum enum
interface interface
@enduml
@endumlDeployment with sketchy-outline theme
@startuml
@startuml
!theme sketchy-outline
actor actor
actor/ "actor/"
agent agent
artifact artifact
boundary boundary
card card
circle circle
cloud cloud
collections collections
component component
control control
database database
entity entity
file file
folder folder
frame frame
hexagon hexagon
interface interface
label label
node node
package package
person person
queue queue
rectangle rectangle
stack stack
storage storage
usecase usecase
usecase/ "usecase/"
@enduml
@endumlGantt with sketchy-outline theme
@startuml
@startuml
!theme sketchy-outline
[Task1] lasts 20 days
note bottom
memo1 ...
memo2 ...
explanations1 ...
explanations2 ...
end note
[Task2] lasts 4 days
[Task1] -> [Task2]
-- Separator title --
[M1] happens on 5 days after [Task1]'s end
-- end --
@enduml
@endumlMindmap with sketchy-outline theme
@startuml
@startmindmap
!theme sketchy-outline
+ root
**:right_1.1
right_1.2;
++ right_2
left side
-- left_1
-- left_2
**:left_3.1
left_3.2;
@endmindmap
@endumlNwdiag with sketchy-outline theme
@startuml
@startuml
!theme sketchy-outline
nwdiag {
network DMZ {
address = "y.x.x.x/24"
web01 [address = "y.x.x.1"];
web02 [address = "y.x.x.2"];
}
network Internal {
web01;
web02;
db01 [address = "w.w.w.z", shape = database];
}
group {
description = "long group label";
web01;
web02;
db01;
}
}
@enduml
@endumlObject with sketchy-outline theme
@startuml
@startuml
!theme sketchy-outline
object user1
user1 : name = "Dummy"
user1 : id = 123
object user2 {
name = "Dummy"
id = 123
}
object o1
object o2
diamond dia
object o3
o1 --> dia
o2 --> dia
dia --> o3
@enduml
@endumlSalt with sketchy-outline theme
@startuml
@startsalt
!theme sketchy-outline
{+
Just plain text
[This is my button]
() Unchecked radio
(X) Checked radio
[] Unchecked box
[X] Checked box
"Enter text here "
^This is a droplist^
}
@endsalt
@endumlSequence with sketchy-outline theme
@startuml
@startuml
!theme sketchy-outline
participant Participant as Foo
actor Actor as Foo1
boundary Boundary as Foo2
control Control as Foo3
entity Entity as Foo4
database Database as Foo5
collections Collections as Foo6
queue Queue as Foo7
Foo -> Foo1 : To actor
Foo -> Foo2 : To boundary
Foo -> Foo3 : To control
Foo -> Foo4 : To entity
Foo -> Foo5 : To database
Foo -> Foo6 : To collections
Foo -> Foo7: To queue
@enduml
@endumlState with sketchy-outline theme
@startuml
@startuml
!theme sketchy-outline
state choice1 <>
state fork1 <>
state join2 <>
state end3 <>
[*] --> choice1 : from start\nto choice
choice1 --> fork1 : from choice\nto fork
choice1 --> join2 : from choice\nto join
choice1 --> end3 : from choice\nto end
fork1 ---> State1 : from fork\nto state
fork1 --> State2 : from fork\nto state
State2 --> join2 : from state\nto join
State1 --> [*] : from state\nto end
join2 --> [*] : from join\nto end
@enduml
@enduml Timing with sketchy-outline theme
@startuml
@startuml
!theme sketchy-outline
robust "Web Browser" as WB
concise "Web User" as WU
WB is Initializing
WU is Absent
@WB
0 is idle
+200 is Processing
+100 is Waiting
WB@0 <-> @50 : {50 ms lag}
@WU
0 is Waiting
+500 is ok
@200 <-> @+150 : {150 ms}
@enduml
@endumlTheme spacelab
Activity with spacelab theme
@startuml
@startuml
!theme spacelab
start
:init;
-> test of color;
if (color?) is (red) then
:print red;
else
:print not red;
note right: no color
endif
partition End {
:end;
}
-> this is the end;
end
@enduml
@enduml Class with spacelab theme
@startuml
@startuml
!theme spacelab
abstract abstract
abstract class "abstract class"
annotation annotation
circle circle
() circle_short_form
class class
diamond diamond
<> diamond_short_form
entity entity
enum enum
interface interface
@enduml
@endumlDeployment with spacelab theme
@startuml
@startuml
!theme spacelab
actor actor
actor/ "actor/"
agent agent
artifact artifact
boundary boundary
card card
circle circle
cloud cloud
collections collections
component component
control control
database database
entity entity
file file
folder folder
frame frame
hexagon hexagon
interface interface
label label
node node
package package
person person
queue queue
rectangle rectangle
stack stack
storage storage
usecase usecase
usecase/ "usecase/"
@enduml
@endumlGantt with spacelab theme
@startuml
@startuml
!theme spacelab
[Task1] lasts 20 days
note bottom
memo1 ...
memo2 ...
explanations1 ...
explanations2 ...
end note
[Task2] lasts 4 days
[Task1] -> [Task2]
-- Separator title --
[M1] happens on 5 days after [Task1]'s end
-- end --
@enduml
@endumlMindmap with spacelab theme
@startuml
@startmindmap
!theme spacelab
+ root
**:right_1.1
right_1.2;
++ right_2
left side
-- left_1
-- left_2
**:left_3.1
left_3.2;
@endmindmap
@endumlNwdiag with spacelab theme
@startuml
@startuml
!theme spacelab
nwdiag {
network DMZ {
address = "y.x.x.x/24"
web01 [address = "y.x.x.1"];
web02 [address = "y.x.x.2"];
}
network Internal {
web01;
web02;
db01 [address = "w.w.w.z", shape = database];
}
group {
description = "long group label";
web01;
web02;
db01;
}
}
@enduml
@endumlObject with spacelab theme
@startuml
@startuml
!theme spacelab
object user1
user1 : name = "Dummy"
user1 : id = 123
object user2 {
name = "Dummy"
id = 123
}
object o1
object o2
diamond dia
object o3
o1 --> dia
o2 --> dia
dia --> o3
@enduml
@endumlSalt with spacelab theme
@startuml
@startsalt
!theme spacelab
{+
Just plain text
[This is my button]
() Unchecked radio
(X) Checked radio
[] Unchecked box
[X] Checked box
"Enter text here "
^This is a droplist^
}
@endsalt
@endumlSequence with spacelab theme
@startuml
@startuml
!theme spacelab
participant Participant as Foo
actor Actor as Foo1
boundary Boundary as Foo2
control Control as Foo3
entity Entity as Foo4
database Database as Foo5
collections Collections as Foo6
queue Queue as Foo7
Foo -> Foo1 : To actor
Foo -> Foo2 : To boundary
Foo -> Foo3 : To control
Foo -> Foo4 : To entity
Foo -> Foo5 : To database
Foo -> Foo6 : To collections
Foo -> Foo7: To queue
@enduml
@endumlState with spacelab theme
@startuml
@startuml
!theme spacelab
state choice1 <>
state fork1 <>
state join2 <>
state end3 <>
[*] --> choice1 : from start\nto choice
choice1 --> fork1 : from choice\nto fork
choice1 --> join2 : from choice\nto join
choice1 --> end3 : from choice\nto end
fork1 ---> State1 : from fork\nto state
fork1 --> State2 : from fork\nto state
State2 --> join2 : from state\nto join
State1 --> [*] : from state\nto end
join2 --> [*] : from join\nto end
@enduml
@enduml Theme toy
Activity with toy theme
@startuml
@startuml
!theme toy
start
:init;
-> test of color;
if (color?) is (red) then
:print red;
else
:print not red;
note right: no color
endif
partition End {
:end;
}
-> this is the end;
end
@enduml
@enduml Class with toy theme
@startuml
@startuml
!theme toy
abstract abstract
abstract class "abstract class"
annotation annotation
circle circle
() circle_short_form
class class
diamond diamond
<> diamond_short_form
entity entity
enum enum
interface interface
@enduml
@endumlDeployment with toy theme
@startuml
@startuml
!theme toy
actor actor
actor/ "actor/"
agent agent
artifact artifact
boundary boundary
card card
circle circle
cloud cloud
collections collections
component component
control control
database database
entity entity
file file
folder folder
frame frame
hexagon hexagon
interface interface
label label
node node
package package
person person
queue queue
rectangle rectangle
stack stack
storage storage
usecase usecase
usecase/ "usecase/"
@enduml
@endumlGantt with toy theme
@startuml
@startuml
!theme toy
[Task1] lasts 20 days
note bottom
memo1 ...
memo2 ...
explanations1 ...
explanations2 ...
end note
[Task2] lasts 4 days
[Task1] -> [Task2]
-- Separator title --
[M1] happens on 5 days after [Task1]'s end
-- end --
@enduml
@endumlMindmap with toy theme
@startuml
@startmindmap
!theme toy
+ root
**:right_1.1
right_1.2;
++ right_2
left side
-- left_1
-- left_2
**:left_3.1
left_3.2;
@endmindmap
@endumlNwdiag with toy theme
@startuml
@startuml
!theme toy
nwdiag {
network DMZ {
address = "y.x.x.x/24"
web01 [address = "y.x.x.1"];
web02 [address = "y.x.x.2"];
}
network Internal {
web01;
web02;
db01 [address = "w.w.w.z", shape = database];
}
group {
description = "long group label";
web01;
web02;
db01;
}
}
@enduml
@endumlObject with toy theme
@startuml
@startuml
!theme toy
object user1
user1 : name = "Dummy"
user1 : id = 123
object user2 {
name = "Dummy"
id = 123
}
object o1
object o2
diamond dia
object o3
o1 --> dia
o2 --> dia
dia --> o3
@enduml
@endumlSalt with toy theme
@startuml
@startsalt
!theme toy
{+
Just plain text
[This is my button]
() Unchecked radio
(X) Checked radio
[] Unchecked box
[X] Checked box
"Enter text here "
^This is a droplist^
}
@endsalt
@endumlSequence with toy theme
@startuml
@startuml
!theme toy
participant Participant as Foo
actor Actor as Foo1
boundary Boundary as Foo2
control Control as Foo3
entity Entity as Foo4
database Database as Foo5
collections Collections as Foo6
queue Queue as Foo7
Foo -> Foo1 : To actor
Foo -> Foo2 : To boundary
Foo -> Foo3 : To control
Foo -> Foo4 : To entity
Foo -> Foo5 : To database
Foo -> Foo6 : To collections
Foo -> Foo7: To queue
@enduml
@endumlState with toy theme
@startuml
@startuml
!theme toy
state choice1 <>
state fork1 <>
state join2 <>
state end3 <>
[*] --> choice1 : from start\nto choice
choice1 --> fork1 : from choice\nto fork
choice1 --> join2 : from choice\nto join
choice1 --> end3 : from choice\nto end
fork1 ---> State1 : from fork\nto state
fork1 --> State2 : from fork\nto state
State2 --> join2 : from state\nto join
State1 --> [*] : from state\nto end
join2 --> [*] : from join\nto end
@enduml
@enduml Theme united
Activity with united theme
@startuml
@startuml
!theme united
start
:init;
-> test of color;
if (color?) is (red) then
:print red;
else
:print not red;
note right: no color
endif
partition End {
:end;
}
-> this is the end;
end
@enduml
@enduml Class with united theme
@startuml
@startuml
!theme united
abstract abstract
abstract class "abstract class"
annotation annotation
circle circle
() circle_short_form
class class
diamond diamond
<> diamond_short_form
entity entity
enum enum
interface interface
@enduml
@endumlDeployment with united theme
@startuml
@startuml
!theme united
actor actor
actor/ "actor/"
agent agent
artifact artifact
boundary boundary
card card
circle circle
cloud cloud
collections collections
component component
control control
database database
entity entity
file file
folder folder
frame frame
hexagon hexagon
interface interface
label label
node node
package package
person person
queue queue
rectangle rectangle
stack stack
storage storage
usecase usecase
usecase/ "usecase/"
@enduml
@endumlGantt with united theme
@startuml
@startuml
!theme united
[Task1] lasts 20 days
note bottom
memo1 ...
memo2 ...
explanations1 ...
explanations2 ...
end note
[Task2] lasts 4 days
[Task1] -> [Task2]
-- Separator title --
[M1] happens on 5 days after [Task1]'s end
-- end --
@enduml
@endumlMindmap with united theme
@startuml
@startmindmap
!theme united
+ root
**:right_1.1
right_1.2;
++ right_2
left side
-- left_1
-- left_2
**:left_3.1
left_3.2;
@endmindmap
@endumlNwdiag with united theme
@startuml
@startuml
!theme united
nwdiag {
network DMZ {
address = "y.x.x.x/24"
web01 [address = "y.x.x.1"];
web02 [address = "y.x.x.2"];
}
network Internal {
web01;
web02;
db01 [address = "w.w.w.z", shape = database];
}
group {
description = "long group label";
web01;
web02;
db01;
}
}
@enduml
@endumlObject with united theme
@startuml
@startuml
!theme united
object user1
user1 : name = "Dummy"
user1 : id = 123
object user2 {
name = "Dummy"
id = 123
}
object o1
object o2
diamond dia
object o3
o1 --> dia
o2 --> dia
dia --> o3
@enduml
@endumlSalt with united theme
@startuml
@startsalt
!theme united
{+
Just plain text
[This is my button]
() Unchecked radio
(X) Checked radio
[] Unchecked box
[X] Checked box
"Enter text here "
^This is a droplist^
}
@endsalt
@endumlSequence with united theme
@startuml
@startuml
!theme united
participant Participant as Foo
actor Actor as Foo1
boundary Boundary as Foo2
control Control as Foo3
entity Entity as Foo4
database Database as Foo5
collections Collections as Foo6
queue Queue as Foo7
Foo -> Foo1 : To actor
Foo -> Foo2 : To boundary
Foo -> Foo3 : To control
Foo -> Foo4 : To entity
Foo -> Foo5 : To database
Foo -> Foo6 : To collections
Foo -> Foo7: To queue
@enduml
@endumlState with united theme
@startuml
@startuml
!theme united
state choice1 <>
state fork1 <>
state join2 <>
state end3 <>
[*] --> choice1 : from start\nto choice
choice1 --> fork1 : from choice\nto fork
choice1 --> join2 : from choice\nto join
choice1 --> end3 : from choice\nto end
fork1 ---> State1 : from fork\nto state
fork1 --> State2 : from fork\nto state
State2 --> join2 : from state\nto join
State1 --> [*] : from state\nto end
join2 --> [*] : from join\nto end
@enduml
@enduml Theme vibrant
Activity with vibrant theme
@startuml
@startuml
!theme vibrant
start
:init;
-> test of color;
if (color?) is (red) then
:print red;
else
:print not red;
note right: no color
endif
partition End {
:end;
}
-> this is the end;
end
@enduml
@enduml Class with vibrant theme
@startuml
@startuml
!theme vibrant
abstract abstract
abstract class "abstract class"
annotation annotation
circle circle
() circle_short_form
class class
diamond diamond
<> diamond_short_form
entity entity
enum enum
interface interface
@enduml
@endumlDeployment with vibrant theme
@startuml
@startuml
!theme vibrant
actor actor
actor/ "actor/"
agent agent
artifact artifact
boundary boundary
card card
circle circle
cloud cloud
collections collections
component component
control control
database database
entity entity
file file
folder folder
frame frame
hexagon hexagon
interface interface
label label
node node
package package
person person
queue queue
rectangle rectangle
stack stack
storage storage
usecase usecase
usecase/ "usecase/"
@enduml
@endumlGantt with vibrant theme
@startuml
@startuml
!theme vibrant
[Task1] lasts 20 days
note bottom
memo1 ...
memo2 ...
explanations1 ...
explanations2 ...
end note
[Task2] lasts 4 days
[Task1] -> [Task2]
-- Separator title --
[M1] happens on 5 days after [Task1]'s end
-- end --
@enduml
@endumlMindmap with vibrant theme
@startuml
@startmindmap
!theme vibrant
+ root
**:right_1.1
right_1.2;
++ right_2
left side
-- left_1
-- left_2
**:left_3.1
left_3.2;
@endmindmap
@endumlNwdiag with vibrant theme
@startuml
@startuml
!theme vibrant
nwdiag {
network DMZ {
address = "y.x.x.x/24"
web01 [address = "y.x.x.1"];
web02 [address = "y.x.x.2"];
}
network Internal {
web01;
web02;
db01 [address = "w.w.w.z", shape = database];
}
group {
description = "long group label";
web01;
web02;
db01;
}
}
@enduml
@endumlObject with vibrant theme
@startuml
@startuml
!theme vibrant
object user1
user1 : name = "Dummy"
user1 : id = 123
object user2 {
name = "Dummy"
id = 123
}
object o1
object o2
diamond dia
object o3
o1 --> dia
o2 --> dia
dia --> o3
@enduml
@endumlSalt with vibrant theme
@startuml
@startsalt
!theme vibrant
{+
Just plain text
[This is my button]
() Unchecked radio
(X) Checked radio
[] Unchecked box
[X] Checked box
"Enter text here "
^This is a droplist^
}
@endsalt
@endumlSequence with vibrant theme
@startuml
@startuml
!theme vibrant
participant Participant as Foo
actor Actor as Foo1
boundary Boundary as Foo2
control Control as Foo3
entity Entity as Foo4
database Database as Foo5
collections Collections as Foo6
queue Queue as Foo7
Foo -> Foo1 : To actor
Foo -> Foo2 : To boundary
Foo -> Foo3 : To control
Foo -> Foo4 : To entity
Foo -> Foo5 : To database
Foo -> Foo6 : To collections
Foo -> Foo7: To queue
@enduml
@endumlState with vibrant theme
@startuml
@startuml
!theme vibrant
state choice1 <>
state fork1 <>
state join2 <>
state end3 <>
[*] --> choice1 : from start\nto choice
choice1 --> fork1 : from choice\nto fork
choice1 --> join2 : from choice\nto join
choice1 --> end3 : from choice\nto end
fork1 ---> State1 : from fork\nto state
fork1 --> State2 : from fork\nto state
State2 --> join2 : from state\nto join
State1 --> [*] : from state\nto end
join2 --> [*] : from join\nto end
@enduml
@enduml Theme superhero
Activity with superhero theme
@startuml
@startuml
!theme superhero
start
:init;
-> test of color;
if (color?) is (red) then
:print red;
else
:print not red;
note right: no color
endif
partition End {
:end;
}
-> this is the end;
end
@enduml
@enduml Class with superhero theme
@startuml
@startuml
!theme superhero
abstract abstract
abstract class "abstract class"
annotation annotation
circle circle
() circle_short_form
class class
diamond diamond
<> diamond_short_form
entity entity
enum enum
interface interface
@enduml
@endumlDeployment with superhero theme
@startuml
@startuml
!theme superhero
actor actor
actor/ "actor/"
agent agent
artifact artifact
boundary boundary
card card
circle circle
cloud cloud
collections collections
component component
control control
database database
entity entity
file file
folder folder
frame frame
hexagon hexagon
interface interface
label label
node node
package package
person person
queue queue
rectangle rectangle
stack stack
storage storage
usecase usecase
usecase/ "usecase/"
@enduml
@endumlGantt with superhero theme
@startuml
@startuml
!theme superhero
[Task1] lasts 20 days
note bottom
memo1 ...
memo2 ...
explanations1 ...
explanations2 ...
end note
[Task2] lasts 4 days
[Task1] -> [Task2]
-- Separator title --
[M1] happens on 5 days after [Task1]'s end
-- end --
@enduml
@endumlMindmap with superhero theme
@startuml
@startmindmap
!theme superhero
+ root
**:right_1.1
right_1.2;
++ right_2
left side
-- left_1
-- left_2
**:left_3.1
left_3.2;
@endmindmap
@endumlNwdiag with superhero theme
@startuml
@startuml
!theme superhero
nwdiag {
network DMZ {
address = "y.x.x.x/24"
web01 [address = "y.x.x.1"];
web02 [address = "y.x.x.2"];
}
network Internal {
web01;
web02;
db01 [address = "w.w.w.z", shape = database];
}
group {
description = "long group label";
web01;
web02;
db01;
}
}
@enduml
@endumlObject with superhero theme
@startuml
@startuml
!theme superhero
object user1
user1 : name = "Dummy"
user1 : id = 123
object user2 {
name = "Dummy"
id = 123
}
object o1
object o2
diamond dia
object o3
o1 --> dia
o2 --> dia
dia --> o3
@enduml
@endumlSalt with superhero theme
@startuml
@startsalt
!theme superhero
{+
Just plain text
[This is my button]
() Unchecked radio
(X) Checked radio
[] Unchecked box
[X] Checked box
"Enter text here "
^This is a droplist^
}
@endsalt
@endumlSequence with superhero theme
@startuml
@startuml
!theme superhero
participant Participant as Foo
actor Actor as Foo1
boundary Boundary as Foo2
control Control as Foo3
entity Entity as Foo4
database Database as Foo5
collections Collections as Foo6
queue Queue as Foo7
Foo -> Foo1 : To actor
Foo -> Foo2 : To boundary
Foo -> Foo3 : To control
Foo -> Foo4 : To entity
Foo -> Foo5 : To database
Foo -> Foo6 : To collections
Foo -> Foo7: To queue
@enduml
@endumlState with superhero theme
@startuml
@startuml
!theme superhero
state choice1 <>
state fork1 <>
state join2 <>
state end3 <>
[*] --> choice1 : from start\nto choice
choice1 --> fork1 : from choice\nto fork
choice1 --> join2 : from choice\nto join
choice1 --> end3 : from choice\nto end
fork1 ---> State1 : from fork\nto state
fork1 --> State2 : from fork\nto state
State2 --> join2 : from state\nto join
State1 --> [*] : from state\nto end
join2 --> [*] : from join\nto end
@enduml
@enduml Theme superhero-outline
Activity with superhero-outline theme
@startuml
@startuml
!theme superhero-outline
start
:init;
-> test of color;
if (color?) is (red) then
:print red;
else
:print not red;
note right: no color
endif
partition End {
:end;
}
-> this is the end;
end
@enduml
@enduml Class with superhero-outline theme
@startuml
@startuml
!theme superhero-outline
abstract abstract
abstract class "abstract class"
annotation annotation
circle circle
() circle_short_form
class class
diamond diamond
<> diamond_short_form
entity entity
enum enum
interface interface
@enduml
@endumlDeployment with superhero-outline theme
@startuml
@startuml
!theme superhero-outline
actor actor
actor/ "actor/"
agent agent
artifact artifact
boundary boundary
card card
circle circle
cloud cloud
collections collections
component component
control control
database database
entity entity
file file
folder folder
frame frame
hexagon hexagon
interface interface
label label
node node
package package
person person
queue queue
rectangle rectangle
stack stack
storage storage
usecase usecase
usecase/ "usecase/"
@enduml
@endumlGantt with superhero-outline theme
@startuml
@startuml
!theme superhero-outline
[Task1] lasts 20 days
note bottom
memo1 ...
memo2 ...
explanations1 ...
explanations2 ...
end note
[Task2] lasts 4 days
[Task1] -> [Task2]
-- Separator title --
[M1] happens on 5 days after [Task1]'s end
-- end --
@enduml
@endumlMindmap with superhero-outline theme
@startuml
@startmindmap
!theme superhero-outline
+ root
**:right_1.1
right_1.2;
++ right_2
left side
-- left_1
-- left_2
**:left_3.1
left_3.2;
@endmindmap
@endumlNwdiag with superhero-outline theme
@startuml
@startuml
!theme superhero-outline
nwdiag {
network DMZ {
address = "y.x.x.x/24"
web01 [address = "y.x.x.1"];
web02 [address = "y.x.x.2"];
}
network Internal {
web01;
web02;
db01 [address = "w.w.w.z", shape = database];
}
group {
description = "long group label";
web01;
web02;
db01;
}
}
@enduml
@endumlObject with superhero-outline theme
@startuml
@startuml
!theme superhero-outline
object user1
user1 : name = "Dummy"
user1 : id = 123
object user2 {
name = "Dummy"
id = 123
}
object o1
object o2
diamond dia
object o3
o1 --> dia
o2 --> dia
dia --> o3
@enduml
@endumlSalt with superhero-outline theme
@startuml
@startsalt
!theme superhero-outline
{+
Just plain text
[This is my button]
() Unchecked radio
(X) Checked radio
[] Unchecked box
[X] Checked box
"Enter text here "
^This is a droplist^
}
@endsalt
@endumlSequence with superhero-outline theme
@startuml
@startuml
!theme superhero-outline
participant Participant as Foo
actor Actor as Foo1
boundary Boundary as Foo2
control Control as Foo3
entity Entity as Foo4
database Database as Foo5
collections Collections as Foo6
queue Queue as Foo7
Foo -> Foo1 : To actor
Foo -> Foo2 : To boundary
Foo -> Foo3 : To control
Foo -> Foo4 : To entity
Foo -> Foo5 : To database
Foo -> Foo6 : To collections
Foo -> Foo7: To queue
@enduml
@endumlState with superhero-outline theme
@startuml
@startuml
!theme superhero-outline
state choice1 <>
state fork1 <>
state join2 <>
state end3 <>
[*] --> choice1 : from start\nto choice
choice1 --> fork1 : from choice\nto fork
choice1 --> join2 : from choice\nto join
choice1 --> end3 : from choice\nto end
fork1 ---> State1 : from fork\nto state
fork1 --> State2 : from fork\nto state
State2 --> join2 : from state\nto join
State1 --> [*] : from state\nto end
join2 --> [*] : from join\nto end
@enduml
@enduml Timing with superhero-outline theme
@startuml
@startuml
!theme superhero-outline
robust "Web Browser" as WB
concise "Web User" as WU
WB is Initializing
WU is Absent
@WB
0 is idle
+200 is Processing
+100 is Waiting
WB@0 <-> @50 : {50 ms lag}
@WU
0 is Waiting
+500 is ok
@200 <-> @+150 : {150 ms}
@enduml
@endumlTheme reddress-darkblue
Activity with reddress-darkblue theme
@startuml
@startuml
!theme reddress-darkblue
start
:init;
-> test of color;
if (color?) is (red) then
:print red;
else
:print not red;
note right: no color
endif
partition End {
:end;
}
-> this is the end;
end
@enduml
@enduml Class with reddress-darkblue theme
@startuml
@startuml
!theme reddress-darkblue
abstract abstract
abstract class "abstract class"
annotation annotation
circle circle
() circle_short_form
class class
diamond diamond
<> diamond_short_form
entity entity
enum enum
interface interface
@enduml
@endumlDeployment with reddress-darkblue theme
@startuml
@startuml
!theme reddress-darkblue
actor actor
actor/ "actor/"
agent agent
artifact artifact
boundary boundary
card card
circle circle
cloud cloud
collections collections
component component
control control
database database
entity entity
file file
folder folder
frame frame
hexagon hexagon
interface interface
label label
node node
package package
person person
queue queue
rectangle rectangle
stack stack
storage storage
usecase usecase
usecase/ "usecase/"
@enduml
@endumlGantt with reddress-darkblue theme
@startuml
@startuml
!theme reddress-darkblue
[Task1] lasts 20 days
note bottom
memo1 ...
memo2 ...
explanations1 ...
explanations2 ...
end note
[Task2] lasts 4 days
[Task1] -> [Task2]
-- Separator title --
[M1] happens on 5 days after [Task1]'s end
-- end --
@enduml
@endumlMindmap with reddress-darkblue theme
@startuml
@startmindmap
!theme reddress-darkblue
+ root
**:right_1.1
right_1.2;
++ right_2
left side
-- left_1
-- left_2
**:left_3.1
left_3.2;
@endmindmap
@endumlNwdiag with reddress-darkblue theme
@startuml
@startuml
!theme reddress-darkblue
nwdiag {
network DMZ {
address = "y.x.x.x/24"
web01 [address = "y.x.x.1"];
web02 [address = "y.x.x.2"];
}
network Internal {
web01;
web02;
db01 [address = "w.w.w.z", shape = database];
}
group {
description = "long group label";
web01;
web02;
db01;
}
}
@enduml
@endumlObject with reddress-darkblue theme
@startuml
@startuml
!theme reddress-darkblue
object user1
user1 : name = "Dummy"
user1 : id = 123
object user2 {
name = "Dummy"
id = 123
}
object o1
object o2
diamond dia
object o3
o1 --> dia
o2 --> dia
dia --> o3
@enduml
@endumlSalt with reddress-darkblue theme
@startuml
@startsalt
!theme reddress-darkblue
{+
Just plain text
[This is my button]
() Unchecked radio
(X) Checked radio
[] Unchecked box
[X] Checked box
"Enter text here "
^This is a droplist^
}
@endsalt
@endumlSequence with reddress-darkblue theme
@startuml
@startuml
!theme reddress-darkblue
participant Participant as Foo
actor Actor as Foo1
boundary Boundary as Foo2
control Control as Foo3
entity Entity as Foo4
database Database as Foo5
collections Collections as Foo6
queue Queue as Foo7
Foo -> Foo1 : To actor
Foo -> Foo2 : To boundary
Foo -> Foo3 : To control
Foo -> Foo4 : To entity
Foo -> Foo5 : To database
Foo -> Foo6 : To collections
Foo -> Foo7: To queue
@enduml
@endumlState with reddress-darkblue theme
@startuml
@startuml
!theme reddress-darkblue
state choice1 <>
state fork1 <>
state join2 <>
state end3 <>
[*] --> choice1 : from start\nto choice
choice1 --> fork1 : from choice\nto fork
choice1 --> join2 : from choice\nto join
choice1 --> end3 : from choice\nto end
fork1 ---> State1 : from fork\nto state
fork1 --> State2 : from fork\nto state
State2 --> join2 : from state\nto join
State1 --> [*] : from state\nto end
join2 --> [*] : from join\nto end
@enduml
@enduml Timing with reddress-darkblue theme
@startuml
@startuml
!theme reddress-darkblue
robust "Web Browser" as WB
concise "Web User" as WU
WB is Initializing
WU is Absent
@WB
0 is idle
+200 is Processing
+100 is Waiting
WB@0 <-> @50 : {50 ms lag}
@WU
0 is Waiting
+500 is ok
@200 <-> @+150 : {150 ms}
@enduml
@endumlTheme reddress-darkorange
Activity with reddress-darkorange theme
@startuml
@startuml
!theme reddress-darkorange
start
:init;
-> test of color;
if (color?) is (red) then
:print red;
else
:print not red;
note right: no color
endif
partition End {
:end;
}
-> this is the end;
end
@enduml
@enduml Class with reddress-darkorange theme
@startuml
@startuml
!theme reddress-darkorange
abstract abstract
abstract class "abstract class"
annotation annotation
circle circle
() circle_short_form
class class
diamond diamond
<> diamond_short_form
entity entity
enum enum
interface interface
@enduml
@endumlDeployment with reddress-darkorange theme
@startuml
@startuml
!theme reddress-darkorange
actor actor
actor/ "actor/"
agent agent
artifact artifact
boundary boundary
card card
circle circle
cloud cloud
collections collections
component component
control control
database database
entity entity
file file
folder folder
frame frame
hexagon hexagon
interface interface
label label
node node
package package
person person
queue queue
rectangle rectangle
stack stack
storage storage
usecase usecase
usecase/ "usecase/"
@enduml
@endumlGantt with reddress-darkorange theme
@startuml
@startuml
!theme reddress-darkorange
[Task1] lasts 20 days
note bottom
memo1 ...
memo2 ...
explanations1 ...
explanations2 ...
end note
[Task2] lasts 4 days
[Task1] -> [Task2]
-- Separator title --
[M1] happens on 5 days after [Task1]'s end
-- end --
@enduml
@endumlMindmap with reddress-darkorange theme
@startuml
@startmindmap
!theme reddress-darkorange
+ root
**:right_1.1
right_1.2;
++ right_2
left side
-- left_1
-- left_2
**:left_3.1
left_3.2;
@endmindmap
@endumlNwdiag with reddress-darkorange theme
@startuml
@startuml
!theme reddress-darkorange
nwdiag {
network DMZ {
address = "y.x.x.x/24"
web01 [address = "y.x.x.1"];
web02 [address = "y.x.x.2"];
}
network Internal {
web01;
web02;
db01 [address = "w.w.w.z", shape = database];
}
group {
description = "long group label";
web01;
web02;
db01;
}
}
@enduml
@endumlObject with reddress-darkorange theme
@startuml
@startuml
!theme reddress-darkorange
object user1
user1 : name = "Dummy"
user1 : id = 123
object user2 {
name = "Dummy"
id = 123
}
object o1
object o2
diamond dia
object o3
o1 --> dia
o2 --> dia
dia --> o3
@enduml
@endumlSalt with reddress-darkorange theme
@startuml
@startsalt
!theme reddress-darkorange
{+
Just plain text
[This is my button]
() Unchecked radio
(X) Checked radio
[] Unchecked box
[X] Checked box
"Enter text here "
^This is a droplist^
}
@endsalt
@endumlSequence with reddress-darkorange theme
@startuml
@startuml
!theme reddress-darkorange
participant Participant as Foo
actor Actor as Foo1
boundary Boundary as Foo2
control Control as Foo3
entity Entity as Foo4
database Database as Foo5
collections Collections as Foo6
queue Queue as Foo7
Foo -> Foo1 : To actor
Foo -> Foo2 : To boundary
Foo -> Foo3 : To control
Foo -> Foo4 : To entity
Foo -> Foo5 : To database
Foo -> Foo6 : To collections
Foo -> Foo7: To queue
@enduml
@endumlState with reddress-darkorange theme
@startuml
@startuml
!theme reddress-darkorange
state choice1 <>
state fork1 <>
state join2 <>
state end3 <>
[*] --> choice1 : from start\nto choice
choice1 --> fork1 : from choice\nto fork
choice1 --> join2 : from choice\nto join
choice1 --> end3 : from choice\nto end
fork1 ---> State1 : from fork\nto state
fork1 --> State2 : from fork\nto state
State2 --> join2 : from state\nto join
State1 --> [*] : from state\nto end
join2 --> [*] : from join\nto end
@enduml
@enduml Timing with reddress-darkorange theme
@startuml
@startuml
!theme reddress-darkorange
robust "Web Browser" as WB
concise "Web User" as WU
WB is Initializing
WU is Absent
@WB
0 is idle
+200 is Processing
+100 is Waiting
WB@0 <-> @50 : {50 ms lag}
@WU
0 is Waiting
+500 is ok
@200 <-> @+150 : {150 ms}
@enduml
@endumlTheme reddress-darkred
Activity with reddress-darkred theme
@startuml
@startuml
!theme reddress-darkred
start
:init;
-> test of color;
if (color?) is (red) then
:print red;
else
:print not red;
note right: no color
endif
partition End {
:end;
}
-> this is the end;
end
@enduml
@enduml Class with reddress-darkred theme
@startuml
@startuml
!theme reddress-darkred
abstract abstract
abstract class "abstract class"
annotation annotation
circle circle
() circle_short_form
class class
diamond diamond
<> diamond_short_form
entity entity
enum enum
interface interface
@enduml
@endumlDeployment with reddress-darkred theme
@startuml
@startuml
!theme reddress-darkred
actor actor
actor/ "actor/"
agent agent
artifact artifact
boundary boundary
card card
circle circle
cloud cloud
collections collections
component component
control control
database database
entity entity
file file
folder folder
frame frame
hexagon hexagon
interface interface
label label
node node
package package
person person
queue queue
rectangle rectangle
stack stack
storage storage
usecase usecase
usecase/ "usecase/"
@enduml
@endumlGantt with reddress-darkred theme
@startuml
@startuml
!theme reddress-darkred
[Task1] lasts 20 days
note bottom
memo1 ...
memo2 ...
explanations1 ...
explanations2 ...
end note
[Task2] lasts 4 days
[Task1] -> [Task2]
-- Separator title --
[M1] happens on 5 days after [Task1]'s end
-- end --
@enduml
@endumlMindmap with reddress-darkred theme
@startuml
@startmindmap
!theme reddress-darkred
+ root
**:right_1.1
right_1.2;
++ right_2
left side
-- left_1
-- left_2
**:left_3.1
left_3.2;
@endmindmap
@endumlNwdiag with reddress-darkred theme
@startuml
@startuml
!theme reddress-darkred
nwdiag {
network DMZ {
address = "y.x.x.x/24"
web01 [address = "y.x.x.1"];
web02 [address = "y.x.x.2"];
}
network Internal {
web01;
web02;
db01 [address = "w.w.w.z", shape = database];
}
group {
description = "long group label";
web01;
web02;
db01;
}
}
@enduml
@endumlObject with reddress-darkred theme
@startuml
@startuml
!theme reddress-darkred
object user1
user1 : name = "Dummy"
user1 : id = 123
object user2 {
name = "Dummy"
id = 123
}
object o1
object o2
diamond dia
object o3
o1 --> dia
o2 --> dia
dia --> o3
@enduml
@endumlSalt with reddress-darkred theme
@startuml
@startsalt
!theme reddress-darkred
{+
Just plain text
[This is my button]
() Unchecked radio
(X) Checked radio
[] Unchecked box
[X] Checked box
"Enter text here "
^This is a droplist^
}
@endsalt
@endumlSequence with reddress-darkred theme
@startuml
@startuml
!theme reddress-darkred
participant Participant as Foo
actor Actor as Foo1
boundary Boundary as Foo2
control Control as Foo3
entity Entity as Foo4
database Database as Foo5
collections Collections as Foo6
queue Queue as Foo7
Foo -> Foo1 : To actor
Foo -> Foo2 : To boundary
Foo -> Foo3 : To control
Foo -> Foo4 : To entity
Foo -> Foo5 : To database
Foo -> Foo6 : To collections
Foo -> Foo7: To queue
@enduml
@endumlState with reddress-darkred theme
@startuml
@startuml
!theme reddress-darkred
state choice1 <>
state fork1 <>
state join2 <>
state end3 <>
[*] --> choice1 : from start\nto choice
choice1 --> fork1 : from choice\nto fork
choice1 --> join2 : from choice\nto join
choice1 --> end3 : from choice\nto end
fork1 ---> State1 : from fork\nto state
fork1 --> State2 : from fork\nto state
State2 --> join2 : from state\nto join
State1 --> [*] : from state\nto end
join2 --> [*] : from join\nto end
@enduml
@enduml Timing with reddress-darkred theme
@startuml
@startuml
!theme reddress-darkred
robust "Web Browser" as WB
concise "Web User" as WU
WB is Initializing
WU is Absent
@WB
0 is idle
+200 is Processing
+100 is Waiting
WB@0 <-> @50 : {50 ms lag}
@WU
0 is Waiting
+500 is ok
@200 <-> @+150 : {150 ms}
@enduml
@endumlTheme reddress-lightblue
Activity with reddress-lightblue theme
@startuml
@startuml
!theme reddress-lightblue
start
:init;
-> test of color;
if (color?) is (red) then
:print red;
else
:print not red;
note right: no color
endif
partition End {
:end;
}
-> this is the end;
end
@enduml
@enduml Class with reddress-lightblue theme
@startuml
@startuml
!theme reddress-lightblue
abstract abstract
abstract class "abstract class"
annotation annotation
circle circle
() circle_short_form
class class
diamond diamond
<> diamond_short_form
entity entity
enum enum
interface interface
@enduml
@endumlDeployment with reddress-lightblue theme
@startuml
@startuml
!theme reddress-lightblue
actor actor
actor/ "actor/"
agent agent
artifact artifact
boundary boundary
card card
circle circle
cloud cloud
collections collections
component component
control control
database database
entity entity
file file
folder folder
frame frame
hexagon hexagon
interface interface
label label
node node
package package
person person
queue queue
rectangle rectangle
stack stack
storage storage
usecase usecase
usecase/ "usecase/"
@enduml
@endumlGantt with reddress-lightblue theme
@startuml
@startuml
!theme reddress-lightblue
[Task1] lasts 20 days
note bottom
memo1 ...
memo2 ...
explanations1 ...
explanations2 ...
end note
[Task2] lasts 4 days
[Task1] -> [Task2]
-- Separator title --
[M1] happens on 5 days after [Task1]'s end
-- end --
@enduml
@endumlMindmap with reddress-lightblue theme
@startuml
@startmindmap
!theme reddress-lightblue
+ root
**:right_1.1
right_1.2;
++ right_2
left side
-- left_1
-- left_2
**:left_3.1
left_3.2;
@endmindmap
@endumlNwdiag with reddress-lightblue theme
@startuml
@startuml
!theme reddress-lightblue
nwdiag {
network DMZ {
address = "y.x.x.x/24"
web01 [address = "y.x.x.1"];
web02 [address = "y.x.x.2"];
}
network Internal {
web01;
web02;
db01 [address = "w.w.w.z", shape = database];
}
group {
description = "long group label";
web01;
web02;
db01;
}
}
@enduml
@endumlObject with reddress-lightblue theme
@startuml
@startuml
!theme reddress-lightblue
object user1
user1 : name = "Dummy"
user1 : id = 123
object user2 {
name = "Dummy"
id = 123
}
object o1
object o2
diamond dia
object o3
o1 --> dia
o2 --> dia
dia --> o3
@enduml
@endumlSalt with reddress-lightblue theme
@startuml
@startsalt
!theme reddress-lightblue
{+
Just plain text
[This is my button]
() Unchecked radio
(X) Checked radio
[] Unchecked box
[X] Checked box
"Enter text here "
^This is a droplist^
}
@endsalt
@endumlSequence with reddress-lightblue theme
@startuml
@startuml
!theme reddress-lightblue
participant Participant as Foo
actor Actor as Foo1
boundary Boundary as Foo2
control Control as Foo3
entity Entity as Foo4
database Database as Foo5
collections Collections as Foo6
queue Queue as Foo7
Foo -> Foo1 : To actor
Foo -> Foo2 : To boundary
Foo -> Foo3 : To control
Foo -> Foo4 : To entity
Foo -> Foo5 : To database
Foo -> Foo6 : To collections
Foo -> Foo7: To queue
@enduml
@endumlState with reddress-lightblue theme
@startuml
@startuml
!theme reddress-lightblue
state choice1 <>
state fork1 <>
state join2 <>
state end3 <>
[*] --> choice1 : from start\nto choice
choice1 --> fork1 : from choice\nto fork
choice1 --> join2 : from choice\nto join
choice1 --> end3 : from choice\nto end
fork1 ---> State1 : from fork\nto state
fork1 --> State2 : from fork\nto state
State2 --> join2 : from state\nto join
State1 --> [*] : from state\nto end
join2 --> [*] : from join\nto end
@enduml
@enduml Timing with reddress-lightblue theme
@startuml
@startuml
!theme reddress-lightblue
robust "Web Browser" as WB
concise "Web User" as WU
WB is Initializing
WU is Absent
@WB
0 is idle
+200 is Processing
+100 is Waiting
WB@0 <-> @50 : {50 ms lag}
@WU
0 is Waiting
+500 is ok
@200 <-> @+150 : {150 ms}
@enduml
@endumlTheme reddress-lightgreen
Class with reddress-lightgreen theme
@startuml
@startuml
!theme reddress-lightgreen
abstract abstract
abstract class "abstract class"
annotation annotation
circle circle
() circle_short_form
class class
diamond diamond
<> diamond_short_form
entity entity
enum enum
interface interface
@enduml
@endumlDeployment with reddress-lightgreen theme
@startuml
@startuml
!theme reddress-lightgreen
actor actor
actor/ "actor/"
agent agent
artifact artifact
boundary boundary
card card
circle circle
cloud cloud
collections collections
component component
control control
database database
entity entity
file file
folder folder
frame frame
hexagon hexagon
interface interface
label label
node node
package package
person person
queue queue
rectangle rectangle
stack stack
storage storage
usecase usecase
usecase/ "usecase/"
@enduml
@endumlGantt with reddress-lightgreen theme
@startuml
@startuml
!theme reddress-lightgreen
[Task1] lasts 20 days
note bottom
memo1 ...
memo2 ...
explanations1 ...
explanations2 ...
end note
[Task2] lasts 4 days
[Task1] -> [Task2]
-- Separator title --
[M1] happens on 5 days after [Task1]'s end
-- end --
@enduml
@endumlMindmap with reddress-lightgreen theme
@startuml
@startmindmap
!theme reddress-lightgreen
+ root
**:right_1.1
right_1.2;
++ right_2
left side
-- left_1
-- left_2
**:left_3.1
left_3.2;
@endmindmap
@endumlNwdiag with reddress-lightgreen theme
@startuml
@startuml
!theme reddress-lightgreen
nwdiag {
network DMZ {
address = "y.x.x.x/24"
web01 [address = "y.x.x.1"];
web02 [address = "y.x.x.2"];
}
network Internal {
web01;
web02;
db01 [address = "w.w.w.z", shape = database];
}
group {
description = "long group label";
web01;
web02;
db01;
}
}
@enduml
@endumlObject with reddress-lightgreen theme
@startuml
@startuml
!theme reddress-lightgreen
object user1
user1 : name = "Dummy"
user1 : id = 123
object user2 {
name = "Dummy"
id = 123
}
object o1
object o2
diamond dia
object o3
o1 --> dia
o2 --> dia
dia --> o3
@enduml
@endumlSalt with reddress-lightgreen theme
@startuml
@startsalt
!theme reddress-lightgreen
{+
Just plain text
[This is my button]
() Unchecked radio
(X) Checked radio
[] Unchecked box
[X] Checked box
"Enter text here "
^This is a droplist^
}
@endsalt
@endumlSequence with reddress-lightgreen theme
@startuml
@startuml
!theme reddress-lightgreen
participant Participant as Foo
actor Actor as Foo1
boundary Boundary as Foo2
control Control as Foo3
entity Entity as Foo4
database Database as Foo5
collections Collections as Foo6
queue Queue as Foo7
Foo -> Foo1 : To actor
Foo -> Foo2 : To boundary
Foo -> Foo3 : To control
Foo -> Foo4 : To entity
Foo -> Foo5 : To database
Foo -> Foo6 : To collections
Foo -> Foo7: To queue
@enduml
@endumlState with reddress-lightgreen theme
@startuml
@startuml
!theme reddress-lightgreen
state choice1 <>
state fork1 <>
state join2 <>
state end3 <>
[*] --> choice1 : from start\nto choice
choice1 --> fork1 : from choice\nto fork
choice1 --> join2 : from choice\nto join
choice1 --> end3 : from choice\nto end
fork1 ---> State1 : from fork\nto state
fork1 --> State2 : from fork\nto state
State2 --> join2 : from state\nto join
State1 --> [*] : from state\nto end
join2 --> [*] : from join\nto end
@enduml
@enduml Timing with reddress-lightgreen theme
@startuml
@startuml
!theme reddress-lightgreen
robust "Web Browser" as WB
concise "Web User" as WU
WB is Initializing
WU is Absent
@WB
0 is idle
+200 is Processing
+100 is Waiting
WB@0 <-> @50 : {50 ms lag}
@WU
0 is Waiting
+500 is ok
@200 <-> @+150 : {150 ms}
@enduml
@endumlTheme reddress-lightorange
Activity with reddress-lightorange theme
@startuml
@startuml
!theme reddress-lightorange
start
:init;
-> test of color;
if (color?) is (red) then
:print red;
else
:print not red;
note right: no color
endif
partition End {
:end;
}
-> this is the end;
end
@enduml
@enduml Class with reddress-lightorange theme
@startuml
@startuml
!theme reddress-lightorange
abstract abstract
abstract class "abstract class"
annotation annotation
circle circle
() circle_short_form
class class
diamond diamond
<> diamond_short_form
entity entity
enum enum
interface interface
@enduml
@endumlDeployment with reddress-lightorange theme
@startuml
@startuml
!theme reddress-lightorange
actor actor
actor/ "actor/"
agent agent
artifact artifact
boundary boundary
card card
circle circle
cloud cloud
collections collections
component component
control control
database database
entity entity
file file
folder folder
frame frame
hexagon hexagon
interface interface
label label
node node
package package
person person
queue queue
rectangle rectangle
stack stack
storage storage
usecase usecase
usecase/ "usecase/"
@enduml
@endumlGantt with reddress-lightorange theme
@startuml
@startuml
!theme reddress-lightorange
[Task1] lasts 20 days
note bottom
memo1 ...
memo2 ...
explanations1 ...
explanations2 ...
end note
[Task2] lasts 4 days
[Task1] -> [Task2]
-- Separator title --
[M1] happens on 5 days after [Task1]'s end
-- end --
@enduml
@endumlMindmap with reddress-lightorange theme
@startuml
@startmindmap
!theme reddress-lightorange
+ root
**:right_1.1
right_1.2;
++ right_2
left side
-- left_1
-- left_2
**:left_3.1
left_3.2;
@endmindmap
@endumlNwdiag with reddress-lightorange theme
@startuml
@startuml
!theme reddress-lightorange
nwdiag {
network DMZ {
address = "y.x.x.x/24"
web01 [address = "y.x.x.1"];
web02 [address = "y.x.x.2"];
}
network Internal {
web01;
web02;
db01 [address = "w.w.w.z", shape = database];
}
group {
description = "long group label";
web01;
web02;
db01;
}
}
@enduml
@endumlObject with reddress-lightorange theme
@startuml
@startuml
!theme reddress-lightorange
object user1
user1 : name = "Dummy"
user1 : id = 123
object user2 {
name = "Dummy"
id = 123
}
object o1
object o2
diamond dia
object o3
o1 --> dia
o2 --> dia
dia --> o3
@enduml
@endumlSalt with reddress-lightorange theme
@startuml
@startsalt
!theme reddress-lightorange
{+
Just plain text
[This is my button]
() Unchecked radio
(X) Checked radio
[] Unchecked box
[X] Checked box
"Enter text here "
^This is a droplist^
}
@endsalt
@endumlSequence with reddress-lightorange theme
@startuml
@startuml
!theme reddress-lightorange
participant Participant as Foo
actor Actor as Foo1
boundary Boundary as Foo2
control Control as Foo3
entity Entity as Foo4
database Database as Foo5
collections Collections as Foo6
queue Queue as Foo7
Foo -> Foo1 : To actor
Foo -> Foo2 : To boundary
Foo -> Foo3 : To control
Foo -> Foo4 : To entity
Foo -> Foo5 : To database
Foo -> Foo6 : To collections
Foo -> Foo7: To queue
@enduml
@endumlState with reddress-lightorange theme
@startuml
@startuml
!theme reddress-lightorange
state choice1 <>
state fork1 <>
state join2 <>
state end3 <>
[*] --> choice1 : from start\nto choice
choice1 --> fork1 : from choice\nto fork
choice1 --> join2 : from choice\nto join
choice1 --> end3 : from choice\nto end
fork1 ---> State1 : from fork\nto state
fork1 --> State2 : from fork\nto state
State2 --> join2 : from state\nto join
State1 --> [*] : from state\nto end
join2 --> [*] : from join\nto end
@enduml
@enduml Timing with reddress-lightorange theme
@startuml
@startuml
!theme reddress-lightorange
robust "Web Browser" as WB
concise "Web User" as WU
WB is Initializing
WU is Absent
@WB
0 is idle
+200 is Processing
+100 is Waiting
WB@0 <-> @50 : {50 ms lag}
@WU
0 is Waiting
+500 is ok
@200 <-> @+150 : {150 ms}
@enduml
@endumlTheme reddress-lightred
Activity with reddress-lightred theme
@startuml
@startuml
!theme reddress-lightred
start
:init;
-> test of color;
if (color?) is (red) then
:print red;
else
:print not red;
note right: no color
endif
partition End {
:end;
}
-> this is the end;
end
@enduml
@enduml Class with reddress-lightred theme
@startuml
@startuml
!theme reddress-lightred
abstract abstract
abstract class "abstract class"
annotation annotation
circle circle
() circle_short_form
class class
diamond diamond
<> diamond_short_form
entity entity
enum enum
interface interface
@enduml
@endumlDeployment with reddress-lightred theme
@startuml
@startuml
!theme reddress-lightred
actor actor
actor/ "actor/"
agent agent
artifact artifact
boundary boundary
card card
circle circle
cloud cloud
collections collections
component component
control control
database database
entity entity
file file
folder folder
frame frame
hexagon hexagon
interface interface
label label
node node
package package
person person
queue queue
rectangle rectangle
stack stack
storage storage
usecase usecase
usecase/ "usecase/"
@enduml
@endumlGantt with reddress-lightred theme
@startuml
@startuml
!theme reddress-lightred
[Task1] lasts 20 days
note bottom
memo1 ...
memo2 ...
explanations1 ...
explanations2 ...
end note
[Task2] lasts 4 days
[Task1] -> [Task2]
-- Separator title --
[M1] happens on 5 days after [Task1]'s end
-- end --
@enduml
@endumlMindmap with reddress-lightred theme
@startuml
@startmindmap
!theme reddress-lightred
+ root
**:right_1.1
right_1.2;
++ right_2
left side
-- left_1
-- left_2
**:left_3.1
left_3.2;
@endmindmap
@endumlNwdiag with reddress-lightred theme
@startuml
@startuml
!theme reddress-lightred
nwdiag {
network DMZ {
address = "y.x.x.x/24"
web01 [address = "y.x.x.1"];
web02 [address = "y.x.x.2"];
}
network Internal {
web01;
web02;
db01 [address = "w.w.w.z", shape = database];
}
group {
description = "long group label";
web01;
web02;
db01;
}
}
@enduml
@endumlObject with reddress-lightred theme
@startuml
@startuml
!theme reddress-lightred
object user1
user1 : name = "Dummy"
user1 : id = 123
object user2 {
name = "Dummy"
id = 123
}
object o1
object o2
diamond dia
object o3
o1 --> dia
o2 --> dia
dia --> o3
@enduml
@endumlSalt with reddress-lightred theme
@startuml
@startsalt
!theme reddress-lightred
{+
Just plain text
[This is my button]
() Unchecked radio
(X) Checked radio
[] Unchecked box
[X] Checked box
"Enter text here "
^This is a droplist^
}
@endsalt
@endumlSequence with reddress-lightred theme
@startuml
@startuml
!theme reddress-lightred
participant Participant as Foo
actor Actor as Foo1
boundary Boundary as Foo2
control Control as Foo3
entity Entity as Foo4
database Database as Foo5
collections Collections as Foo6
queue Queue as Foo7
Foo -> Foo1 : To actor
Foo -> Foo2 : To boundary
Foo -> Foo3 : To control
Foo -> Foo4 : To entity
Foo -> Foo5 : To database
Foo -> Foo6 : To collections
Foo -> Foo7: To queue
@enduml
@endumlState with reddress-lightred theme
@startuml
@startuml
!theme reddress-lightred
state choice1 <>
state fork1 <>
state join2 <>
state end3 <>
[*] --> choice1 : from start\nto choice
choice1 --> fork1 : from choice\nto fork
choice1 --> join2 : from choice\nto join
choice1 --> end3 : from choice\nto end
fork1 ---> State1 : from fork\nto state
fork1 --> State2 : from fork\nto state
State2 --> join2 : from state\nto join
State1 --> [*] : from state\nto end
join2 --> [*] : from join\nto end
@enduml
@enduml Timing with reddress-lightred theme
@startuml
@startuml
!theme reddress-lightred
robust "Web Browser" as WB
concise "Web User" as WU
WB is Initializing
WU is Absent
@WB
0 is idle
+200 is Processing
+100 is Waiting
WB@0 <-> @50 : {50 ms lag}
@WU
0 is Waiting
+500 is ok
@200 <-> @+150 : {150 ms}
@enduml
@enduml
