Maths

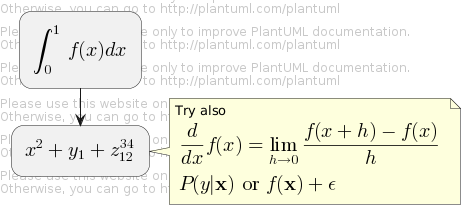

Within PlantUML, you can use AsciiMath notation:

@startuml
:int_0^1f(x)dx;
:x^2+y_1+z_12^34;
note right
Try also
d/dxf(x)=lim_(h->0)(f(x+h)-f(x))/h
P(y|bb"x") or f(bb"x")+epsilon
end note
@enduml

or JLaTeXMath notation:

@startuml
:\int_0^1f(x)dx;
:x^2+y_1+z_{12}^{34};
note right
Try also
\dfrac{d}{dx}f(x)=\lim\limits_{h \to 0}\dfrac{f(x+h)-f(x)}{h}
P(y|\mathbf{x}) \mbox{ or } f(\mathbf{x})+\epsilon
end note
@enduml

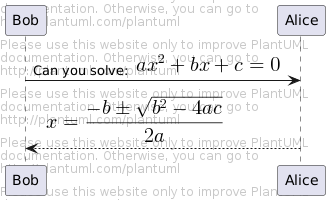

Here is another example:

@startuml
Bob -> Alice : Can you solve: ax^2+bx+c=0
Alice --> Bob: x = (-b+-sqrt(b^2-4ac))/(2a)
@enduml

Standalone diagram

You can also use @startmath/@endmath to create standalone AsciiMath formula.

@startmath
f(t)=(a_0)/2 + sum_(n=1)^ooa_ncos((npit)/L)+sum_(n=1)^oo b_n\ sin((npit)/L)
@endmath

Or use @startlatex/@endlatex to create standalone JLaTeXMath formula.

@startlatex
\sum_{i=0}^{n-1} (a_i + b_i^2)
@endlatex

How is this working?

To draw those formulas, PlantUML uses two open source projects:

  • AsciiMath that converts AsciiMath notation to LaTeX expression;

  • JLatexMath that displays mathematical formulas written in LaTeX. JLaTeXMath is the best Java library to display LaTeX code.

ASCIIMathTeXImg.js is small enough to be integrated into PlantUML standard distribution.

Since JLatexMath is bigger, you have to download it separately, then unzip the 4 jar files (batik-all-1.7.jar, jlatexmath-minimal-1.0.3.jar, jlm\_cyrillic.jar and jlm\_greek.jar) in the same folder as PlantUML.jar.
